In winter, the grapevine is dormant. Its owner is not. Pruning decisions, trial designs, and the plan for the coming season are all shaped in these quiet months — and increasingly they are shaped by data.
Grapevine canopy analysis is the measurement of the vine's leaf layer — its density, gaps, and light penetration — from a photograph, in order to predict vine health, disease pressure, and fruit quality before problems become visible.
A decade ago that meant hemispherical cameras, ceptometers, and a spreadsheet at the end of a long day. Today a smartphone photo pointed up through the canopy returns Leaf Area Index (LAI), canopy cover, and gap fraction in seconds — and a folder of a few hundred photos becomes a clean CSV overnight. This guide explains what that data means, how AI batch processing scales it from a single vine to a whole vineyard, and where it fits across the season.
- The canopy is the primary indicator of vine health, vigour balance, and disease risk — read it well and you read the coming harvest.
- A phone photo can return 12 canopy characteristics, including LAI, PAI, canopy cover, crown porosity, and clumping index, exported as CSV.
- AI batch processing turns hundreds or thousands of grapevine images — and even vineyard video — into structured data, with a human-in-the-loop check.
- The same photo-centric workflow spans the season: canopy in-season, inflorescence counts at flowering, berry sizing post-harvest.
What grapevine canopy analysis is — and why it matters
The grapevine canopy is a window into the soul of your vineyard. Look through it carefully and you can see the 2025 harvest taking shape. Canopy management is the cornerstone of effective vineyard operations because the canopy is the vine's primary indicator: of health, of performance, and of problems that have not yet surfaced elsewhere.
Canopy analysis quantifies that window. Instead of a subjective glance down the row, it converts the leaf layer into numbers — how much light reaches the fruit zone, how dense and how porous the wall of foliage is, and how leaves are clumped or evenly spread. Three relationships make this data so valuable:
- Light penetration patterns directly influence grape development. Optimal canopies show dappled light through the fruit zone; for wine grapes this shapes phenolic development, flavour complexity, and uniform ripening.
- Disease prevention centres on airflow. Dense, humid canopies are ideal for powdery mildew and botrytis. Regularly measuring and maintaining canopy density lowers disease pressure without leaning solely on chemistry.
- Water-stress detection often shows in the canopy first. Shifts in leaf angle, shoot-tip vigour, and overall appearance are early cues for irrigation timing and volume — well before wilting.
Underneath all of this sits one balance: vegetative versus reproductive growth. Excessive vigour throws the fruit zone into detrimental shade; insufficient vigour compromises fruit quality and vine health. That balance drives both this season's production and the vineyard's long-term sustainability — which is exactly why it is worth measuring rather than guessing.
Which canopy metrics can you measure from a smartphone photo?

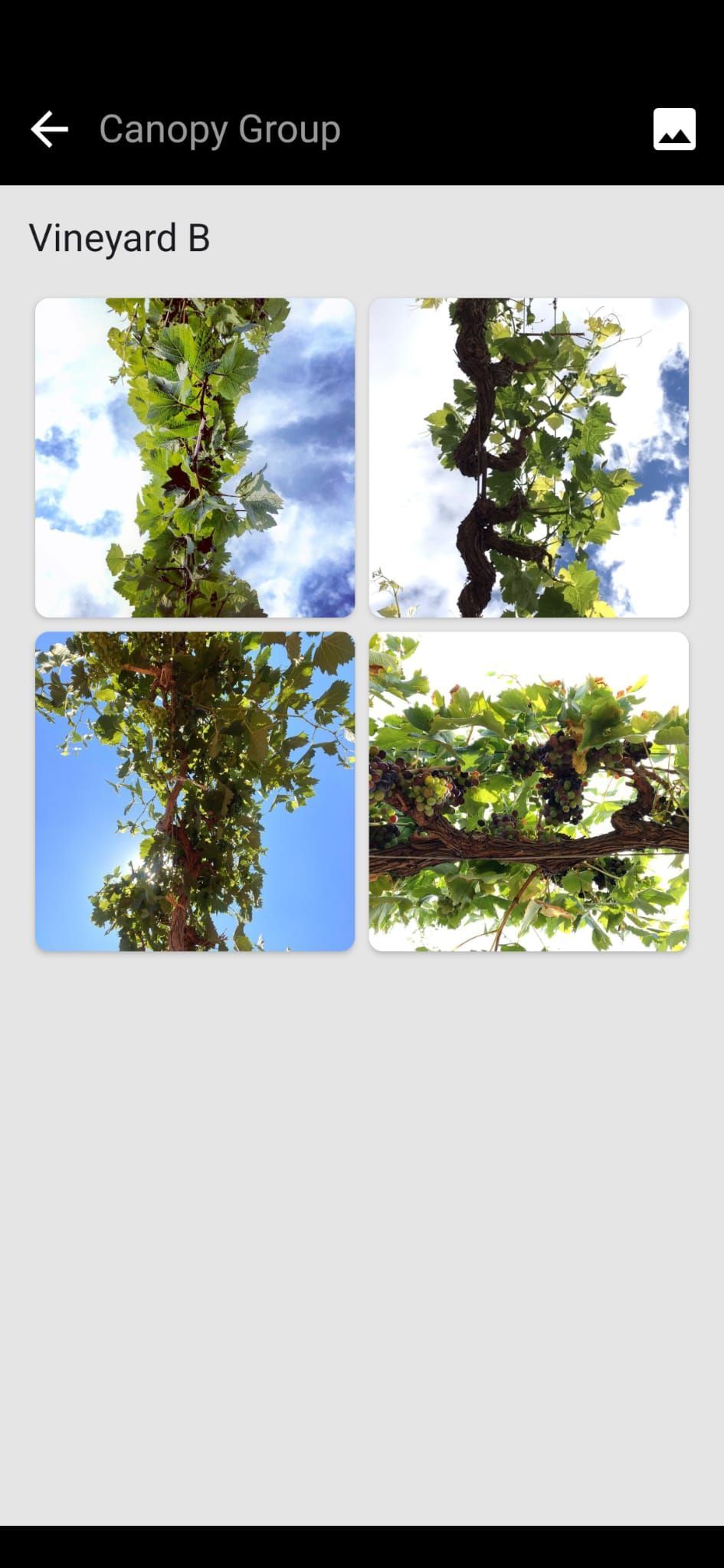

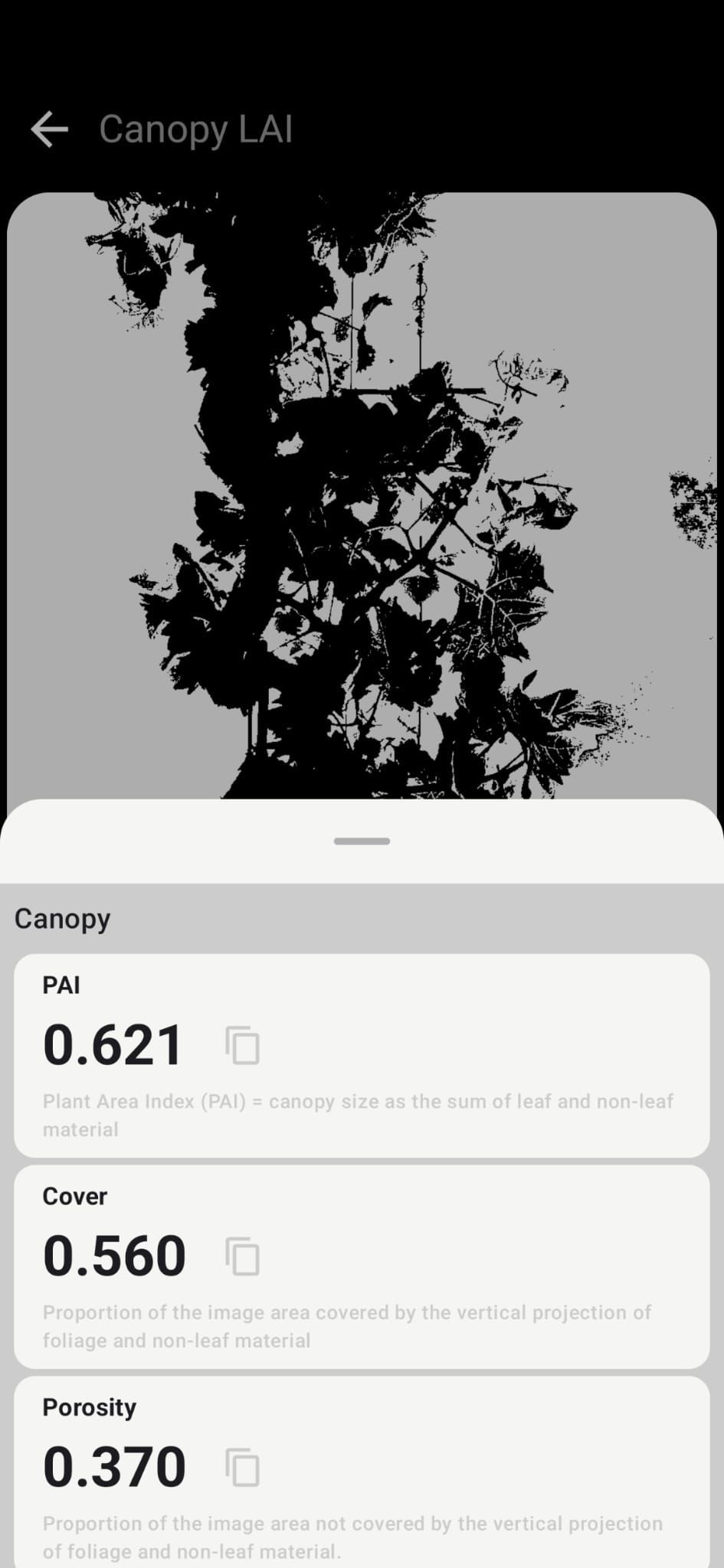

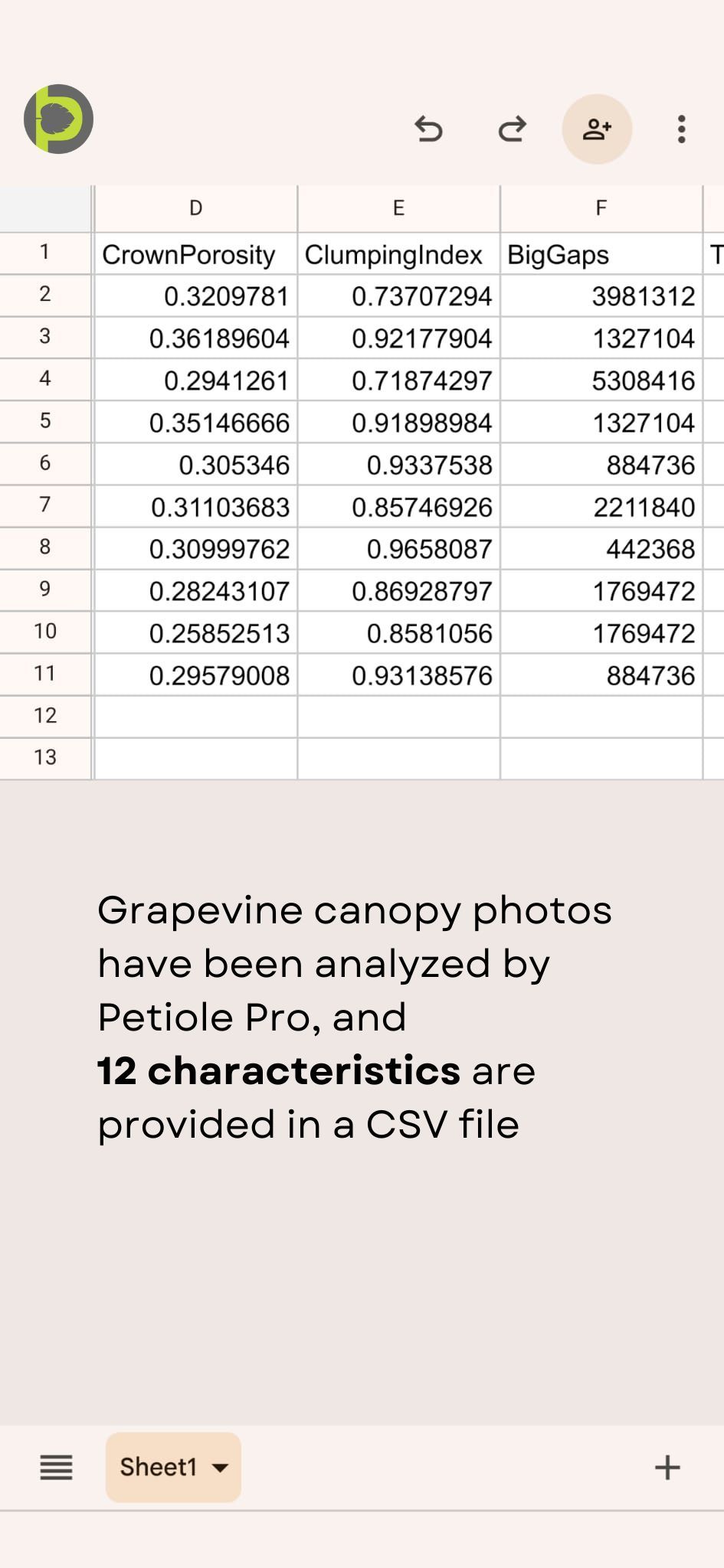

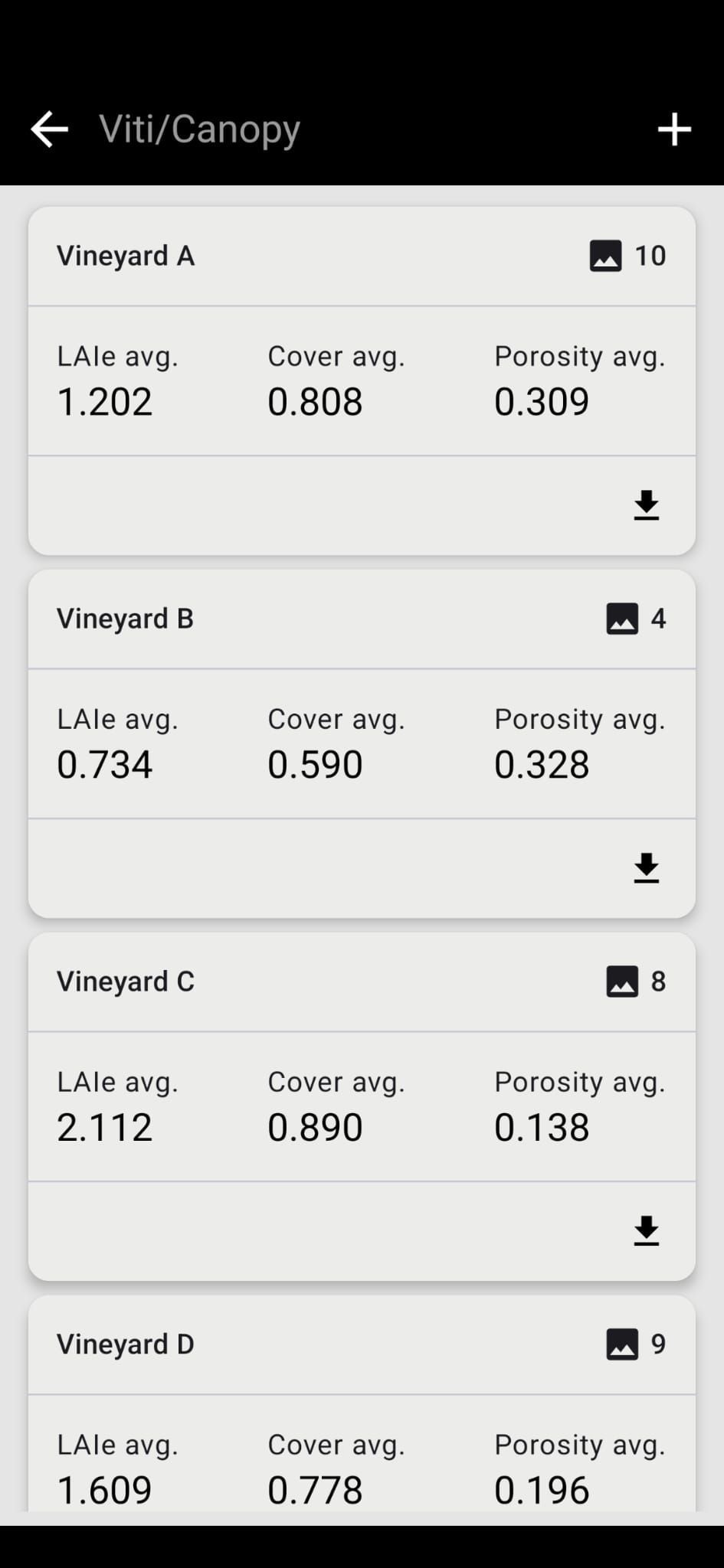

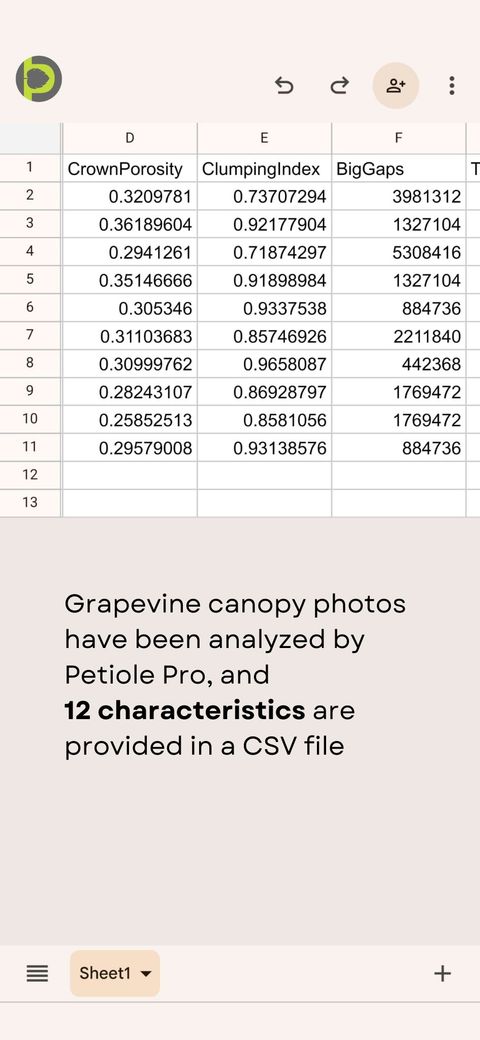

If you have used VitiCanopy, this list will feel familiar. From a single upward photo of the canopy, Petiole Pro derives a full set of gap-fraction and structure metrics, then delivers them as a CSV you can analyse further. Twelve characteristics are provided per photo:
- Leaf Area Index (LAI): the area of leaf surface per unit of ground — the headline measure of canopy density.
- Plant Area Index (PAI): canopy size as the sum of leaf and non-leaf material.
- Canopy Cover: the proportion of the image covered by the vertical projection of foliage and non-leaf material.
- Crown Porosity: the proportion of the image not covered by that projection — how open the canopy is.
- Clumping Index: how evenly leaves are distributed versus grouped together.
- Big Gaps & Total Gaps: the large openings and the overall gap fraction that let light and air through.
- Gap Threshold, Total Pixels, Extinction Coefficient & Subdivisions: the technical parameters behind the calculation, kept transparent in the export.

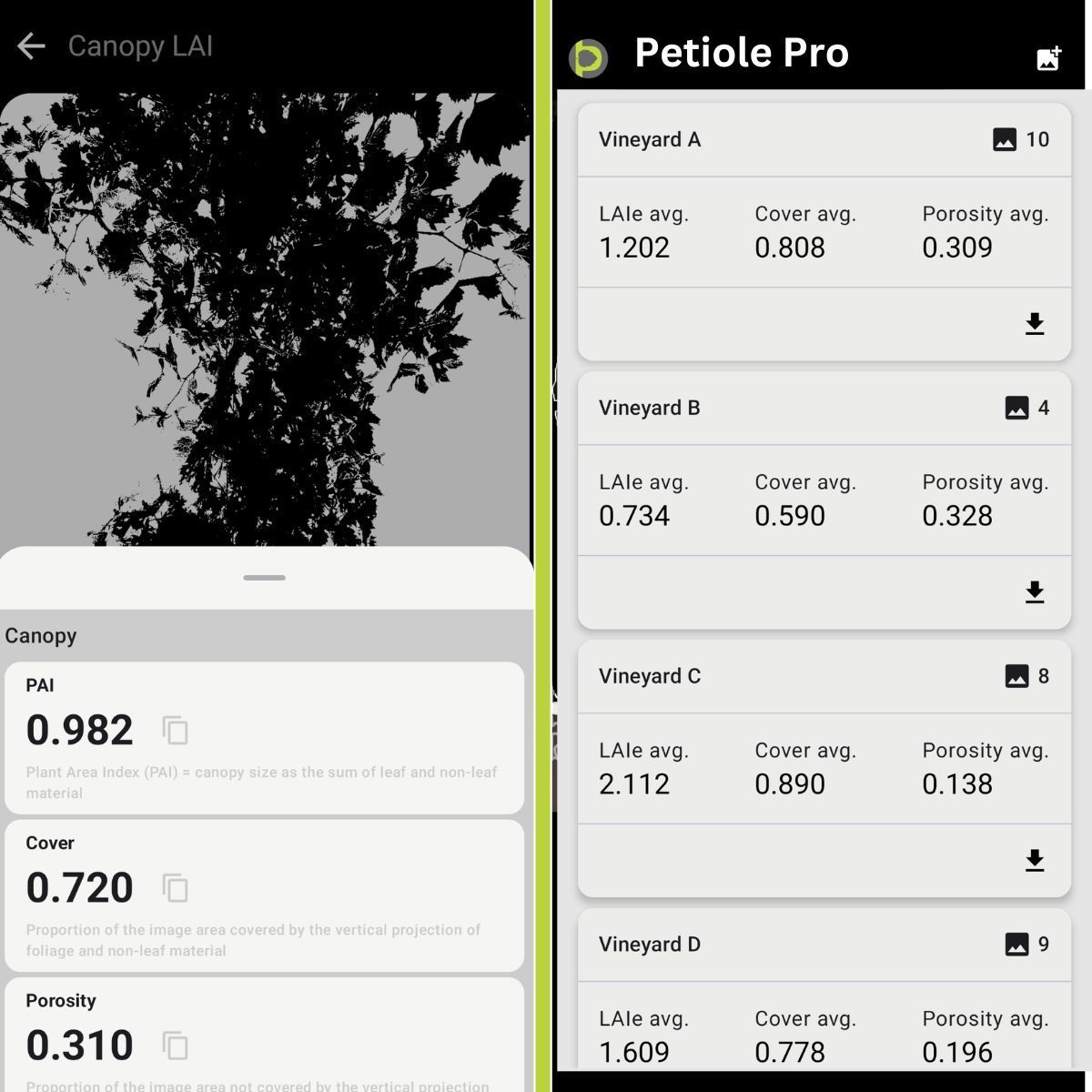

Because every photo produces the same structured fields, the results stack neatly. A morning's photos become rows in a spreadsheet, ready for statistics, mapping, or comparison between blocks and treatments.
Leaf area: destructive and non-destructive methods
Canopy density has a close cousin: individual leaf area. Classic viticulture research estimates it with both destructive sampling (removing and scanning leaves) and non-destructive modelling from leaf dimensions — as in the Spanish study Modelos de estimación del área foliar en Vitis vinifera "Mencía". Photo-based measurement sits firmly in the non-destructive camp: you keep the leaf on the vine, photograph it against a scale, and let the app return the area. The leaf stays; the data is captured.
How canopy data drives in-season decisions
Numbers only matter if they change what you do next. Canopy analytics feed directly into the levers growers already pull — canopy trimming, leaf removal, shoot thinning, irrigation, and spray timing — but with evidence instead of instinct.
A canopy that is too dense is a disease forecast; a canopy that is too sparse is a quality warning. The value of measurement is catching either one early enough to act.
Tracking cover and porosity across a block shows where the wall of foliage has closed in and needs opening for airflow, and where it is thin enough to risk sunburn or under-ripening. At Petiole Pro we see ground-level, AI-powered visual assessment as one layer of a fuller picture: combined with precision tools such as NDVI imaging and soil-moisture monitoring, it produces comprehensive canopy-health data and enables precise, targeted management rather than blanket interventions.
Batch processing: from one vine to the whole vineyard
Measuring one canopy is useful. Measuring a whole trial is transformative — and that is where manual methods collapse. This is the problem batch processing solves.
"I have 2,000 leaves… can I still measure them automatically? And for how long?"

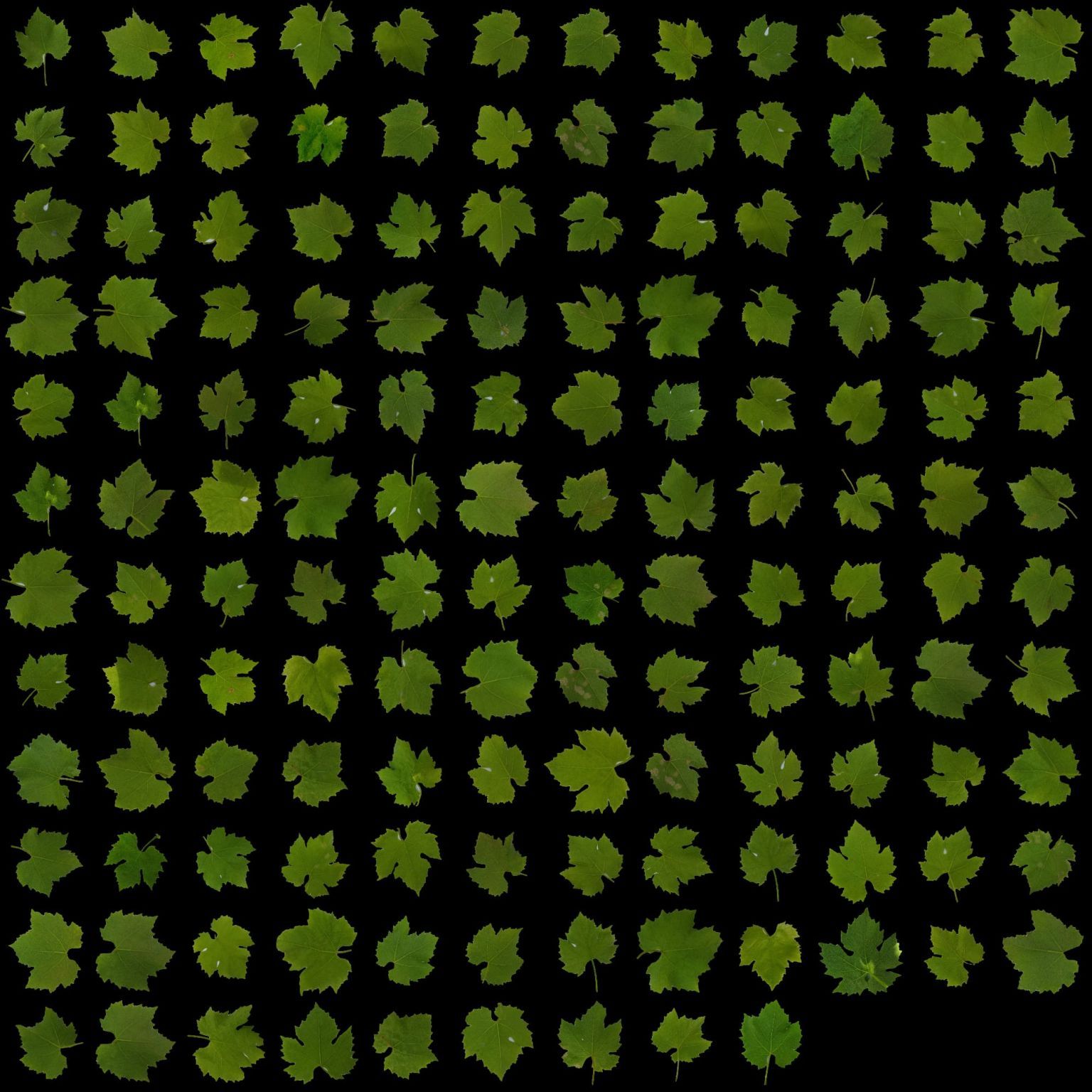

When you are deep in a plant-science project, that grind can feel like pure despair. Measuring 2,000 leaves by hand costs at least a full day of your life, often more — and no, you cannot yet hand the labour to ChatGPT, Claude, or Gemini. We helped one researcher finish that "tiny" task in about three hours. He received a CSV plus grid images of every leaf, still checked with a human-in-the-loop verification step, so the numbers were both fast and trustworthy.
The same pipeline handles vineyard-scale canopy work. Send us 100+ photos of grapevines and their traits and we process them for free, under an NDA so your data stays yours. You only pay when the job runs into the thousands of images — and the pricing is deliberately friendly. (After all, Jeff Bezos isn't sharing his bank account with your vineyard.)
Stop spending your life on counting. Start spending it on discovery. Focus on the science.
Leaf area or canopy cover on its own brings no value. Its value is as the critical data point that proves a hypothesis and makes an experiment genuinely data-driven — which is only possible when collecting it stops eating your week.
Counting berries and inflorescences — from photos and video
Canopy is the start, not the whole story. The same photo-centric approach counts objects on the vine, which is where yield estimation begins. The workflow is three steps: take photos, send them to Petiole Pro, and get an automatic count back with photo proof and a CSV.

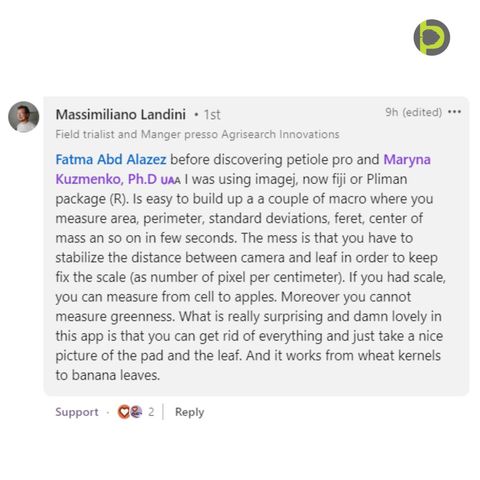

It works on-vine as well as in the tray — a big thank-you to Massimiliano Landini of AgriSearch Innovations (🇮🇹) for putting berry counting to work in his grapevine trials. And because the model reads pixels, it is not limited to still images:
We can process video straight from the vineyard to count grapevine inflorescences (flowers), fruits, or whatever else your viticulture and oenology work depends on.
That matters because inflorescence and fruit-set counts at flowering are among the earliest, hardest-to-collect yield signals of the season. Turning a walk down the row with a phone camera into a counted, verifiable dataset is a genuinely new capability.
Post-harvest berry quality assurance

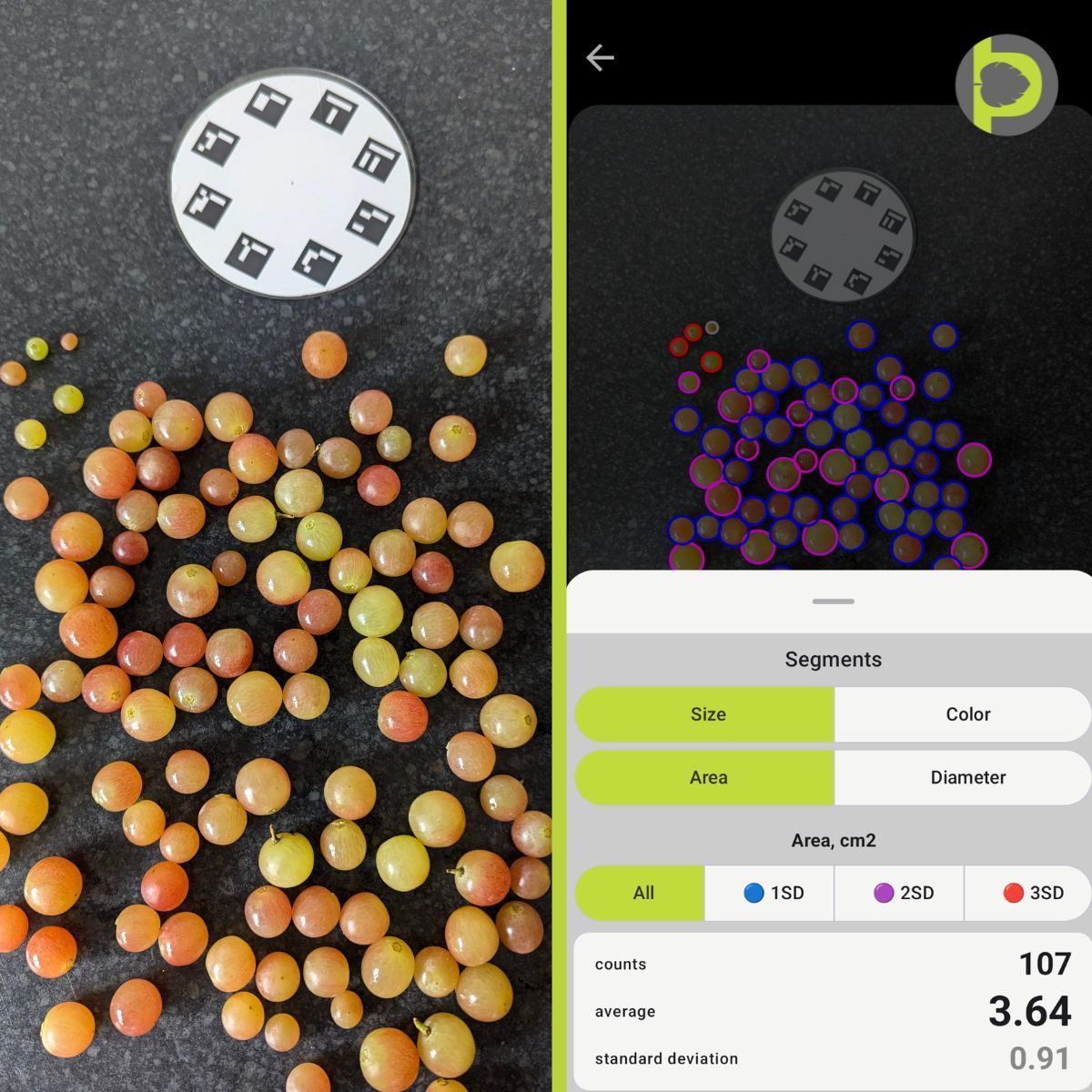

After harvest, the same tools turn to quality control. Place a sample of berries in front of the camera and the app automatically:
- counts the grapes in the frame;
- measures average berry diameter;
- measures average berry area;
- calculates the standard deviation, so you can see uniformity at a glance.
Post-harvest berry sizing, sorting, and uniformity deserve a guide of their own — we cover the calibration setup, sampling, and reading of the standard deviation in a dedicated article on grape post-harvest quality control.
Fitting canopy AI analytics into your production cycle
Treated as a one-off measurement, canopy analytics is a neat trick. Treated as a thread through the season, it becomes a core component of the viticulture production cycle — one photo-centric dataset that grows from dormancy to post-harvest:
- Dormancy & pruning planning: review last season's canopy density and vigour balance to set pruning targets.
- Budburst to canopy fill: track LAI, cover, and porosity as the wall of foliage develops.
- Flowering: count inflorescences from photos or video for early yield signals.
- Veraison & ripening: monitor light in the fruit zone and manage density for disease control and even ripening.
- Harvest: size and count berries to check maturity and uniformity.
- Post-harvest: run quality assurance on berry samples and archive a clean CSV record for next year's decisions.
At every stage the input is the same — a photo, or a batch of them — and the output is the same: structured, verifiable data you actually own.
Petiole Pro for viticulture
Turn your vineyard photos into canopy data
Measure grapevine canopy from your phone, or send us a batch of images or vineyard video and get canopy metrics, leaf area, and object counts back as CSV — the first batches are free and covered by an NDA.
From a single vine to the whole estate, the workflow stays the same: photograph, process, decide.
Frequently asked questions
What is grapevine canopy analysis?
Grapevine canopy analysis measures the vine's leaf layer — its density, gaps, and light penetration — usually from an upward photo of the canopy. It returns metrics such as Leaf Area Index (LAI), canopy cover, and gap fraction that indicate vine health, disease risk, and likely fruit quality.
Can you measure Leaf Area Index (LAI) with a smartphone?
Yes. A smartphone photo taken upward through the canopy is enough for Petiole Pro to estimate LAI along with PAI, canopy cover, crown porosity, clumping index, and gap metrics — 12 characteristics per photo, exported as CSV. If you have used VitiCanopy, the outputs will look familiar.
What is the difference between destructive and non-destructive leaf area measurement?
Destructive measurement removes leaves to scan or weigh them. Non-destructive measurement estimates leaf area without harming the plant — from leaf dimensions or from a calibrated photo, keeping the leaf on the vine. Photo-based apps are non-destructive.
How does batch processing of vineyard photos work?
You send a folder of grapevine images — canopy, leaves, or bunches — and receive a CSV plus grid images of the results, checked with a human-in-the-loop step. Batches of 100+ photos are processed free of charge under an NDA; only very large jobs of thousands of images are paid, at friendly pricing.
Can Petiole Pro count grapes and inflorescences from video?
Yes. Beyond still photos, vineyard video can be processed to count grapevine inflorescences (flowers), fruits, and berries. In one example, 1,828 grapes were counted across 34 photos, and berry counting has been used in field trials on the vine.
Is AI canopy analysis accurate?
Accuracy is protected by a human-in-the-loop approach: the model produces the counts and measurements, and a person verifies edge cases before results are finalised. You also receive grid or segmented images so every measurement can be traced back to a real leaf, canopy, or berry.
