Leaf area measurement guide
One of the most common questions from new Petiole Pro users is simple: do I need to use the calibration plate for leaf area measurement?
Yes — if you want leaf area results in cm², you need the calibration plate.
Without calibration, the app may still detect the leaf in the image, but the measurement will be in pixels, not in real-world units such as square centimetres.
Why calibration matters for leaf area measurement
A photo does not automatically tell the app how large an object is in real life. The camera sees the leaf as a shape made of pixels. To convert those pixels into real-world units, Petiole Pro needs a known reference size in the same image.
That reference is the Petiole Pro calibration plate. It helps the app understand the scale of the image and calculate leaf area in cm².
This is especially important when you compare measurements between plants, treatments, dates, fields, or research samples. Without proper calibration, the result may not be comparable in real-world units.
Pixels versus cm²: what is the difference?
If the calibration plate is not visible, the app can still analyse the leaf as an image object. But it cannot reliably know the real physical size of that object.
- With calibration plate: leaf area can be calculated in cm².
- Without calibration plate: leaf area is only available in pixels.
Pixel-based measurements can sometimes be useful for internal image processing, but they are not the same as biological or agronomic measurements in square centimetres.
For real leaf area measurement, use the calibration plate.
Where can you get a Petiole Pro calibration plate?
You can get a Petiole Pro calibration plate in two ways: download one of three free printable PDF plates and print it on A4 at 100% scale, or order a rigid, reusable plate from the Petiole Pro store.
You do not have to buy a plate before your first measurement. Every free plate carries the same 8 ArUco markers the app uses to read the scale of the image, so a correctly printed sheet gives you leaf area in cm² today, on a normal office printer, at no cost.
Download a free printable calibration plate
Choose the plate that matches your workflow. All three files are PDFs, prepared for A4 paper, and free to download.
Print, place next to your leaf, and measure. No account, no email, no cost.
Calibration pad for leaf area
- MeasuresLeaf area in cm²
- PageA4 landscape
- Markers8 ArUco
Calibration pad for leaf area and greenness
- MeasuresLeaf area and greenness
- PageA4 landscape
- Markers8 ArUco + 2 green patches
Small calibration pad
- MeasuresLeaf area in cm²
- PageA4 portrait
- Markers8 ArUco, enlarged
Which free calibration plate should you choose?
Use this comparison if you are not sure which of the three files fits your measurement.
| Free plate | What it measures | Page format | Best for |
|---|---|---|---|
| Calibration pad for leaf area | Leaf area in cm² | PDF, A4 landscape | Standard leaf area measurement, single leaves or small batches |
| Calibration pad for leaf area and greenness | Leaf area in cm² and leaf greenness | PDF, A4 landscape | Nitrogen, chlorosis, and colour studies where greenness matters |
| Small calibration pad | Leaf area in cm² | PDF, A4 portrait | Small leaves, seedlings, and tight field or lab setups |
How to print the calibration plate correctly
A printed plate is only a valid reference if it comes off the printer at its true size. Follow these five steps every time you print a new sheet.
- Print at 100% scale on A4. In the print dialog choose “Actual size” and turn off “Fit to page” and “Shrink oversized pages”. Any scaling changes the reference size and the cm² result.
- Use plain white matte paper. Glossy photo paper reflects light and can hide the markers behind glare.
- Keep the sheet flat. Tape or glue it to card, foam board, or a clipboard so it cannot curl or bend in the wind.
- Check all 8 ArUco markers. Each marker must be complete, sharp, and fully black — a streaky or cut-off marker can stop calibration.
- Reprint when it wears. Replace the sheet as soon as it becomes creased, wet, faded, or dirty in the field.
A printed plate must be at 100% scale and stay flat — a resized or curled sheet changes the reference size and the cm² result.
When should you choose a durable plate instead?
Printed paper works well for testing and for occasional measurements, but it wears out in the field. For regular research, greenhouse, or nursery work, a rigid manufactured plate keeps its exact dimensions, survives repeated handling, and stays flat in every photo.
How to place the calibration plate
Place the calibration plate in the same photo as the leaf. The plate should be flat, clearly visible, and not hidden by the leaf, your hand, shadows, or other objects.
The leaf and the calibration plate should also be in the same plane. This means they should be at the same distance from the camera.
If the leaf is much closer to the camera than the plate, or much farther away from it, the calculated size can become less accurate.

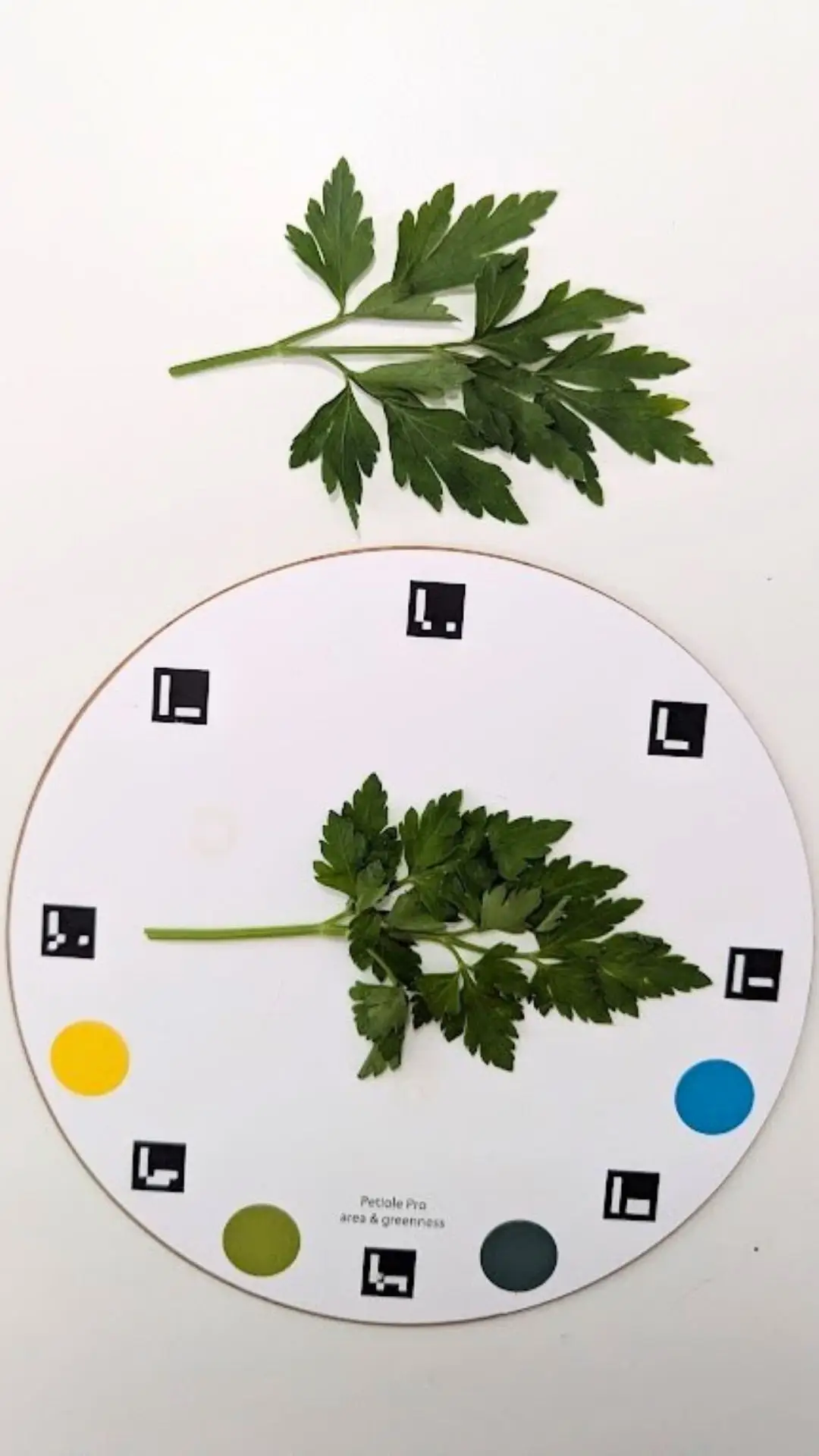

Keep all 8 ArUco markers visible

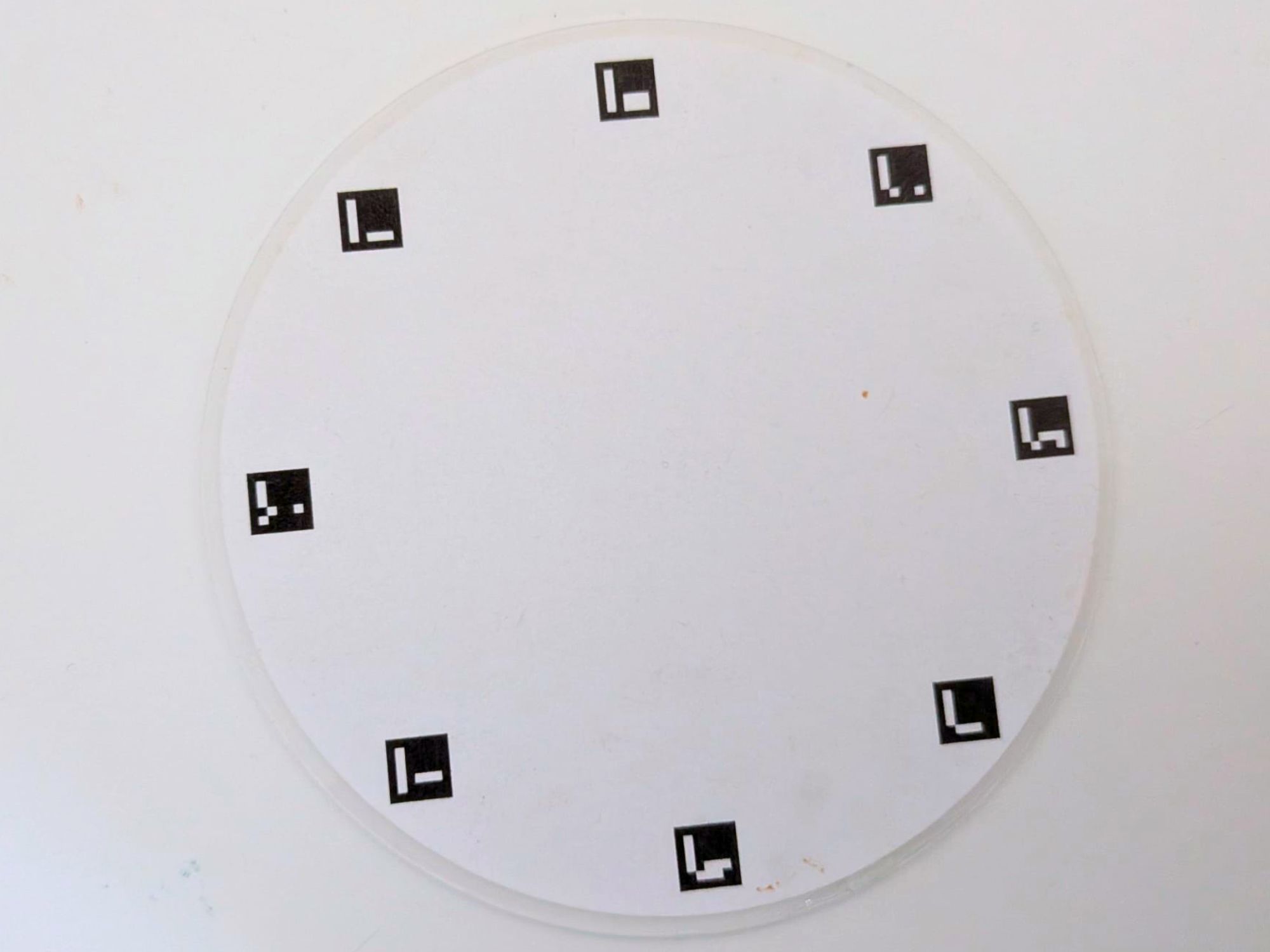

The Petiole Pro calibration plate includes 8 ArUco markers. These markers help the app detect the plate and understand the scale of the image.
For best results, keep all 8 markers visible in the photo. Do not cover them with leaves, fingers, labels, soil, shadows, or glare.
- Are all 8 markers visible?
- Are the markers sharp, not blurred?
- Is the plate inside the frame?
- Is the plate not covered by the leaf?
- Is the light even enough to recognise the markers?

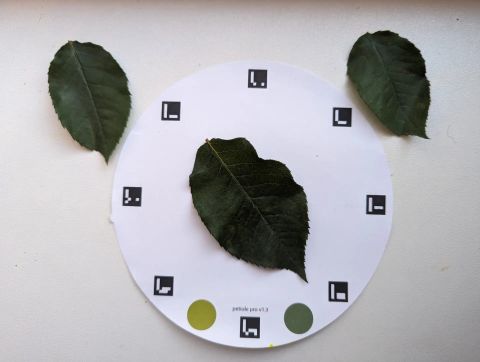

Can leaves be placed around the plate or on it?
Yes. You can place leaves around the calibration plate or on the plate, depending on your sample size, leaf shape, and field setup.
The key rule is that the markers must remain visible. If the leaf covers the ArUco markers, the app may not be able to use the plate for calibration.
For smaller leaves, placing them directly on the plate can work well. For larger leaves, it is often better to place the leaf next to or around the plate, while keeping the plate fully visible in the same photo.
Leaves can be on or around the plate — but the 8 calibration markers must stay visible.
Common mistakes to avoid
Most calibration problems are caused by simple photo setup issues. Before taking measurements, try to avoid these common mistakes:
- taking a photo without the calibration plate;
- covering one or more ArUco markers with the leaf;
- placing the plate far behind or far in front of the leaf;
- cropping the plate out of the image;
- using a blurred photo;
- photographing in harsh light with strong glare;
- placing the plate at a strong angle;
- allowing shadows to cover the markers.
A good calibration photo does not need to be complicated. It only needs to be clear, flat, well-lit, and consistent.
Quick checklist for Petiole Pro calibration
Before taking a leaf area photo, check:
- Is the calibration plate visible?
- Are all 8 ArUco markers visible?
- Is the leaf visible and not cut off?
- Are the leaf and plate in the same plane?
- Is the photo sharp?
- Is there no strong glare or shadow on the plate?
- Is the leaf not covering the markers?
- Is the setup consistent across all samples?
If the answer is yes, your image is much more likely to produce a reliable leaf area measurement in cm².
Final answer
Do you need the calibration plate?
Yes, for leaf area measurement in cm², you need the calibration plate. Without it, the result may only be available in pixels.
Place the leaf and plate in the same photo, keep all 8 ArUco markers visible, and make sure the leaf and plate are at the same distance from the camera.
You can place leaves around the plate or on the plate — just do not cover the markers.
Do not have a plate yet? Download a free printable calibration plate or order a durable one in the store.
Frequently asked questions
Can Petiole Pro measure leaf area without the calibration plate?
It may detect the leaf area in pixels, but it cannot reliably convert that area into cm² without calibration.
Why do I need all 8 ArUco markers visible?
The markers help the app recognise the calibration plate and calculate the image scale. If some markers are hidden or blurred, calibration may fail or become less reliable.
Can I place the leaf on the calibration plate?
Yes, but only if the leaf does not cover the ArUco markers. For larger leaves, it is often better to place the leaf around or next to the plate.
Where can I get a Petiole Pro calibration plate for free?
You can download a free printable calibration plate as a PDF — there are three files: a plate for leaf area, a plate for leaf area and greenness, and a small compact plate. Print on A4 at 100% scale and keep the sheet flat.
Which free Petiole Pro calibration plate should I choose?
Choose the calibration pad for leaf area for standard leaf area measurement in cm². Choose the calibration pad for leaf area and greenness if you also study leaf colour, nitrogen status, or chlorosis. Choose the small calibration pad for small leaves, seedlings, and tight field or lab setups.
Is a printed paper calibration plate as good as a bought one?
A correctly printed plate calibrates the image the same way, as long as it is printed at 100% scale and stays flat. A manufactured plate from the Petiole Pro store is more durable in the field: it does not curl, tear, or fade, so its reference size stays reliable over many seasons.
What unit will I get without calibration?
Without calibration, the measurement is image-based and may be expressed in pixels rather than cm². For real-world leaf area measurement, use the calibration plate.
