Greenness & plant nitrogen
The colour of a leaf is one of the oldest signals in agronomy. A deep, dark green usually means a well-fed, chlorophyll-rich, nitrogen-sufficient plant; a pale, yellow-green leaf often signals stress or a nitrogen deficit. For a century, farmers and researchers read that signal by eye. The problem is that the human eye is inconsistent — it drifts with the weather, the time of day, and who is doing the looking. Turning leaf colour into a repeatable number is what makes it useful for research and precision management.
The Dark Green Colour Index (DGCI) is that number. It is a calibrated, image-based measure of leaf greenness — a relative index of chlorophyll content and, by extension, plant nitrogen status. With the Petiole Pro app and a Greenness Calibrating Plate, you can measure DGCI from an ordinary smartphone photo in seconds, non-destructively, in the field.
This long-read explains what DGCI is, how the Greenness Calibrating Plate makes the measurement reliable across different cameras and lighting, how to take a measurement step by step, and the best-practice guidelines that separate a trustworthy reading from a misleading one. It draws on Petiole Pro's official Greenness Calibrating Plates instruction (Seleznov & Kuzmenko, 2024), which is embedded in full at the end of the article.
- DGCI is a relative measure of chlorophyll content derived from a leaf's colour in the HSV (hue, saturation, brightness) colour space. Higher DGCI = darker green = more chlorophyll and, typically, higher nitrogen.
- The Greenness Calibrating Plate anchors the measurement: its ArUco markers correct for camera angle and distance, and its green colour references correct for lighting — so DGCI stays comparable across phones, days, and fields.
- Measurement is non-invasive: photograph a leaf on the plate, tap it in the app, and read the DGCI value. Destructive and non-destructive methods give equivalent accuracy.
- Three rules protect accuracy: avoid direct sunlight (shoot in your own shadow), keep the camera close so all markers are visible, and use a clean lens.
- DGCI shows a strong linear relationship with SPAD chlorophyll-meter values, so it can estimate chlorophyll — and nitrogen status — without dedicated hardware.
What is the Dark Green Colour Index (DGCI)?
The Dark Green Colour Index (DGCI) is a numerical index, ranging from 0 to 1, that quantifies how dark green a leaf is. It was designed so that a single value captures what an experienced agronomist sees when they judge a leaf as "healthy dark green" versus "pale and hungry". The greener the leaf, the higher the DGCI, and the higher the presumed level of chlorophyll — which is why it is used as a proxy for plant nitrogen status.
Crucially, DGCI is not computed from raw red-green-blue (RGB) pixel values, which are unstable and camera-dependent. It is computed in the HSV colour space — hue, saturation and brightness — which separates the "what colour" information (hue) from "how intense" (saturation) and "how bright" (brightness). This separation is what makes greenness measurable in a way that survives different lighting and different devices.
DGCI combines the three HSV components into one figure using the formula introduced by Karcher and Richardson (2003): DGCI = [ (Hue − 60) / 60 + (1 − Saturation) + (1 − Brightness) ] / 3. In Petiole Pro this calculation happens automatically — you never touch the maths — but knowing that greenness is read from hue, saturation and brightness together explains why lighting control and colour calibration matter so much.
Why leaf greenness reflects nitrogen and chlorophyll
Leaf colour is not decorative — it is a readout of leaf biochemistry. The green you see is chlorophyll, the pigment that drives photosynthesis. Nitrogen is a central building block of chlorophyll and of the enzymes that run photosynthesis, so a plant's nitrogen supply and its chlorophyll concentration tend to move together. When nitrogen is short, chlorophyll falls, and leaves turn a paler green or yellow; when nitrogen is plentiful, leaves build more chlorophyll and darken.
That chain — nitrogen → chlorophyll → leaf greenness → DGCI — is why a colour index can stand in for a laboratory tissue test in many situations. It will not replace a lab assay for absolute concentrations, but for tracking change and comparing treatments, plants, or dates, a calibrated greenness value is fast, cheap, and non-destructive. It lets you monitor a crop's nitrogen story over a season instead of taking one expensive snapshot.
DGCI turns a subjective judgement — "that leaf looks a bit pale" — into a repeatable number you can log, compare, and act on.
This is the same logic that underpins photo-based plant phenotyping more broadly: convert what a trained eye sees into structured data. If you are new to measuring leaf traits from photographs, our guide to photographing leaves for accurate measurement in the field covers the imaging fundamentals that apply to greenness too.
The Greenness Calibrating Plate: how it works
A raw smartphone photo is a poor scientific instrument. The same leaf photographed on two phones, or on the same phone at 9 a.m. and 3 p.m., can produce different colour values — because cameras apply automatic white balance and exposure, and because ambient light itself changes colour through the day. The Greenness Calibrating Plate exists to cancel out those variables so that any change in DGCI reflects the plant, not the camera or the sky.

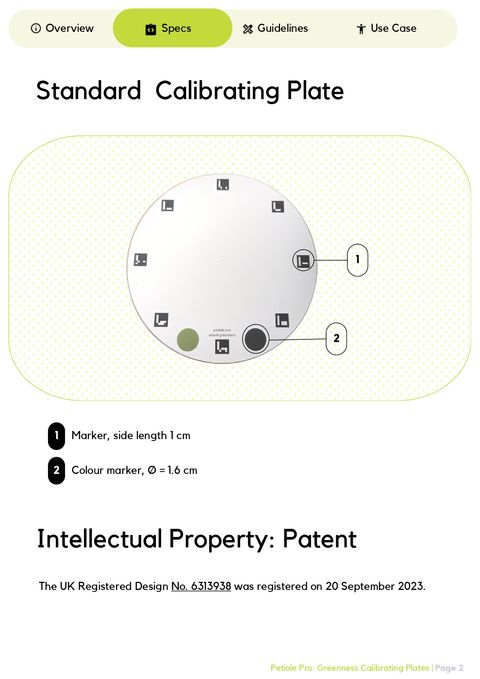

The plate is a circular reference target that does two jobs at once:
- Geometric calibration. Around its rim sit eight square black-and-white ArUco markers (side length 1 cm on the standard plate). The app detects these markers to work out the camera's angle and distance, then corrects perspective and converts pixels into real-world units — the same mechanism that lets Petiole Pro measure leaf area accurately.
- Colour calibration. The plate carries two green colour markers (diameter 1.6 cm on the standard plate) — a lighter and a darker green that bracket the range of leaf greens. These known references let the app normalise colour against the current lighting, so a leaf's measured greenness is reported on a stable, comparable scale.
Standard and simplified plates
As of March 2024 there are two plate types. The standard calibrating plate carries the full set of eight markers and two colour references, and is the most robust choice for demanding field conditions and research. The simplified calibrating plate is a compact version for quicker, more portable use. Both are designed for adaptability — usable indoors or outdoors, across diverse field conditions and multiple crop species — and both support destructive and non-destructive measurement.
Because the plate carries its own reference targets, it behaves like a portable, printable calibration standard rather than a fixed laboratory scanner — the same principle behind Petiole Pro's leaf-area calibration. If you want the deeper background on why a printed reference target matters and when you need one, see our explainer on whether you need a calibration plate for Petiole Pro.

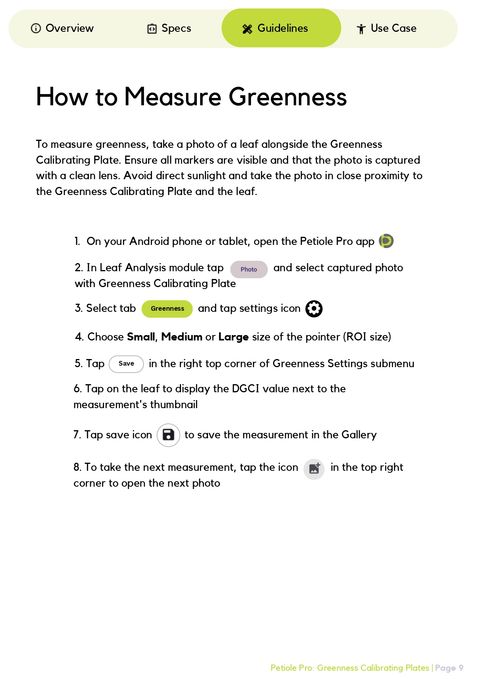

How to measure greenness with Petiole Pro, step by step

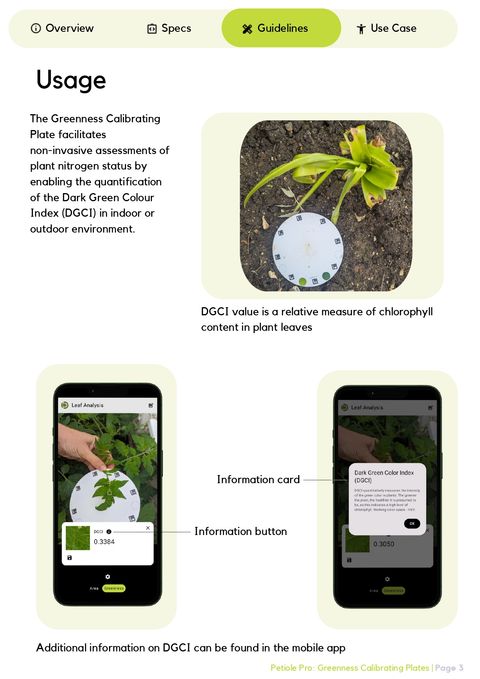

Measuring DGCI is a photograph-and-tap workflow. Place a leaf on the Greenness Calibrating Plate, capture a clean photo with all markers visible, and let the app do the rest. Here is the full sequence from the official instruction:
- On your Android phone or tablet, open the Petiole Pro app.
- In the Leaf Analysis module, tap Photo and select the captured photo that includes the Greenness Calibrating Plate.
- Select the Greenness tab and tap the settings icon.
- Choose Small, Medium or Large for the size of the pointer — the region of interest (ROI) the app samples on the leaf.
- Tap Save in the top-right corner of the Greenness Settings submenu.
- Tap on the leaf to display the DGCI value next to the measurement's thumbnail.
- Tap the save icon to store the measurement in the Gallery.
- To take the next measurement, tap the image icon in the top-right corner to open the next photo.
The pointer (ROI) size matters: a smaller pointer samples a tight spot — useful on narrow leaves or specific lesions — while a larger pointer averages over more leaf area for a more representative reading on broad leaves. Choose it to match the leaf you are measuring, and keep it consistent within a study.
Best-practice guidelines: light, distance, lens
A calibrated instrument still needs to be used well. Three field habits protect the accuracy of every DGCI reading. Each is a simple "do this, not that".

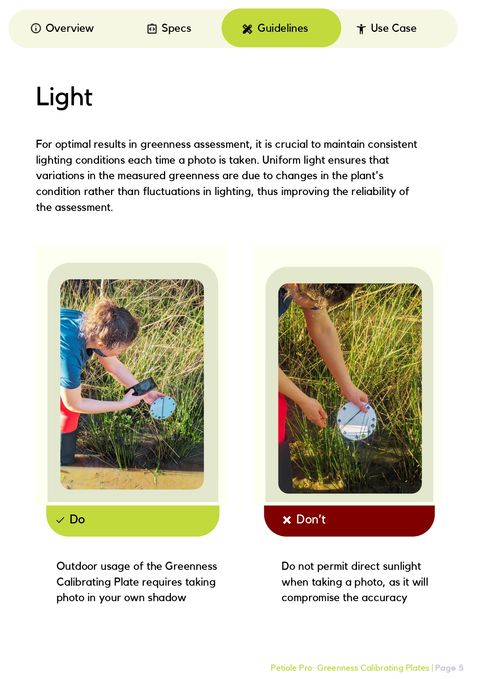

1. Control the light — shoot in your own shadow
Consistent lighting is the single most important factor in reliable greenness assessment. Uniform light ensures that changes in measured greenness reflect changes in the plant, not fluctuations in illumination. Outdoors, the trap is direct sunlight, which casts harsh highlights and shadows across the plate and leaf and compromises accuracy. The fix is to photograph in your own shadow, giving the plate soft, even light.

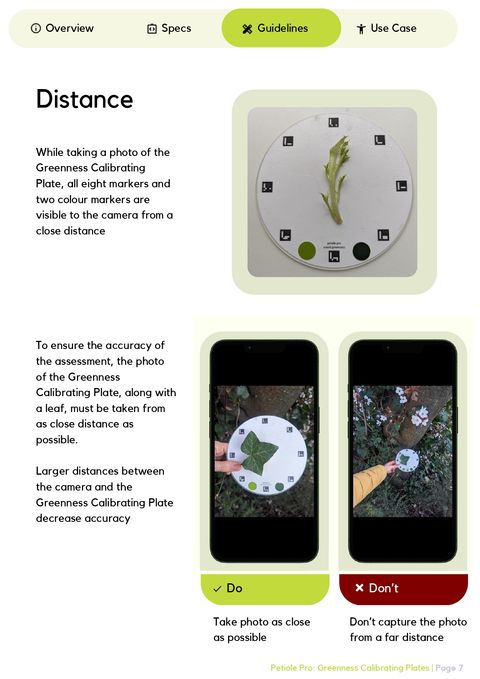

2. Keep it close — all markers must be visible
Take the photo from as close a distance as possible while keeping all eight markers and both colour markers in frame. The app relies on seeing every marker to calibrate geometry and colour; larger distances between the camera and the plate reduce accuracy. Close and complete beats far and partial, every time.

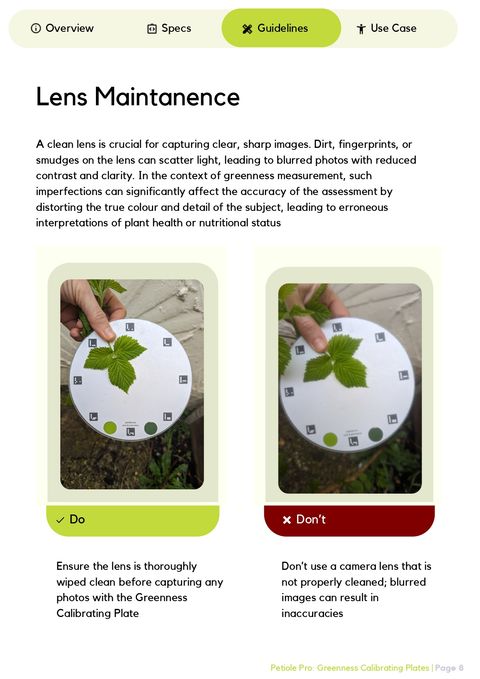

3. Clean the lens
A clean lens is easy to overlook and costly to ignore. Dirt, fingerprints and smudges scatter light, producing blurred, low-contrast images that distort the true colour of the leaf — exactly the information DGCI depends on. Wipe the lens before capturing any photo with the Greenness Calibrating Plate.

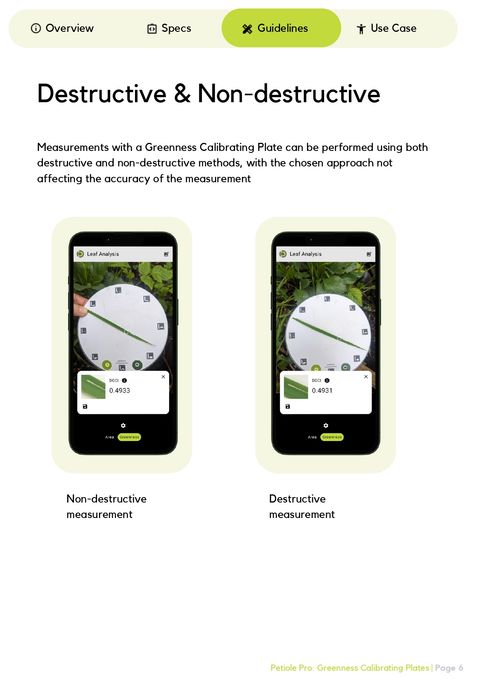

Destructive vs non-destructive measurement
One of the plate's practical strengths is flexibility. You can measure greenness using either a non-destructive method — holding an attached, living leaf against the plate — or a destructive method, detaching the leaf and laying it on the plate. Critically, the chosen approach does not affect the accuracy of the measurement, so you can pick whichever suits your protocol.
Non-destructive measurement is ideal for repeated monitoring of the same plant over time, or when you must not damage the crop. Destructive measurement can be more convenient for batch processing of sampled leaves, or when a leaf needs flattening for a clean read. Both slot into the same photograph-and-tap workflow.
DGCI and SPAD: two ways to read chlorophyll
The most common dedicated instrument for estimating leaf chlorophyll is the SPAD meter (soil plant analysis development), a handheld device clamped onto a leaf to produce a chlorophyll-related index. SPAD meters are well validated but they are single-purpose hardware with a cost to match. DGCI offers a route to similar information from a smartphone you already own.

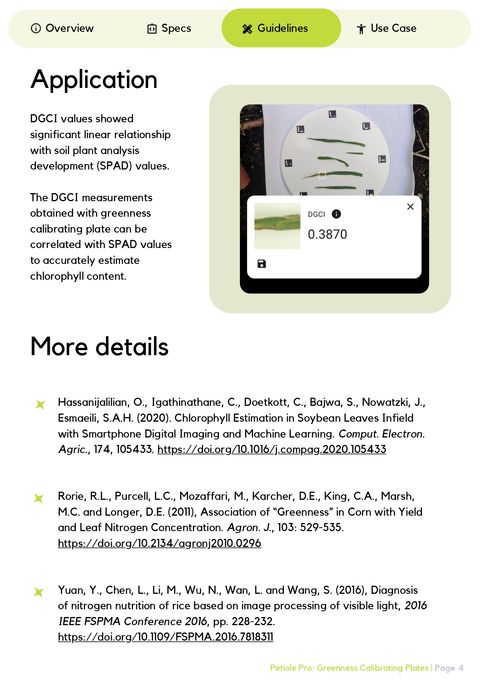

DGCI values show a significant linear relationship with SPAD values. Because the two track each other, DGCI measurements from the Greenness Calibrating Plate can be correlated with SPAD readings to accurately estimate chlorophyll content — and, through it, nitrogen status — without a dedicated chlorophyll meter.
This correlation is well supported in the literature. The instruction cites, among others, Hassanijalilian et al. (2020) on estimating soybean-leaf chlorophyll from smartphone imaging and machine learning; Rorie et al. (2011) on the association of "greenness" in corn with yield and leaf nitrogen concentration; and Yuan et al. (2016) on diagnosing rice nitrogen from visible-light image processing.
How researchers use DGCI in the field
Petiole Pro's greenness measurement is not a laboratory curiosity — it appears in published research and technical training across several countries and crops. A few examples from the instruction show the range:
- LED light ratios and pakchoy growth (Universitas Diponegoro, Indonesia). A study on how red and blue LED light quality affects the growth, yield and physiology of pakchoy (Brassica rapa var. chinensis) in indoor farming, finding that a balanced red-to-blue ratio improved growth, chlorophyll and carotenoid levels, and fresh weight (Rosyida et al., 2022, AGROMIX).
- Rice on saline-sodic soil (Institut Teknologi Bandung, Indonesia). Work on enhancing rice growth through gypsum and biochar–manure amendments and seed biopriming, where reducing soil salinity improved plant growth and yield (Magdalena & Manurung, 2022).
- Non-invasive nitrogen assessment in wheat (INRAE, France). A Remote Sensing study using visible images to estimate nitrogen status in winter wheat, proposing a normalised dark green colour index (nDGCI) that correlated strongly with the Nitrogen Nutrition Index (Gée et al., 2023).
- Image-based leaf-greenness training (Weihenstephan-Triesdorf, Germany). Petiole Pro featured among alternative approaches to image-based measurement of leaf greenness in AgriSAT technical training materials (Pray, 2022).
The common thread is nitrogen and chlorophyll management across very different systems — indoor farms, saline soils, arable fields. Greenness measurement scales the way photo-based phenotyping generally does: cheaply, and across many samples. We have written before about how the same non-destructive, image-first approach supports leaf trait studies, from mangrove leaf area under salinity stress to specific leaf area in oak seedlings under warming.

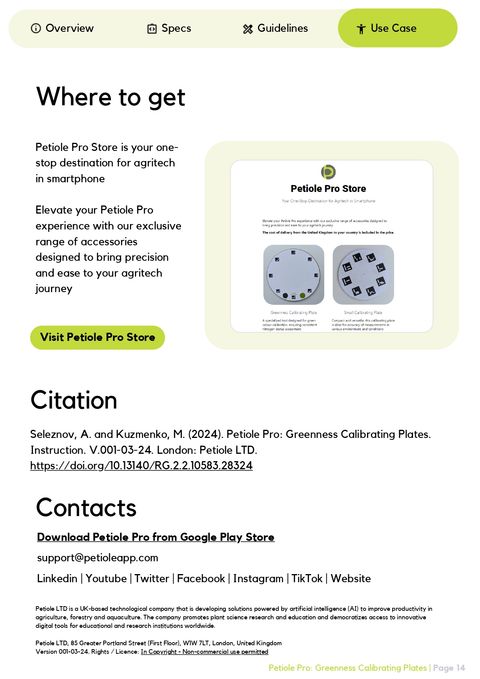

The full instruction
The complete Petiole Pro Greenness Calibrating Plates instruction — covering the overview, technical specifications, usage guidelines, and research use cases in full — is embedded below. It is the authoritative reference for everything summarised in this article.
Petiole Pro for greenness & nitrogen
Measure DGCI for your own crops and trials
From a single plant to a whole trial, Petiole Pro turns a smartphone photo into a calibrated greenness value you can trust — the basis for tracking chlorophyll, estimating nitrogen status, and comparing treatments over a season. Pair the app with a Greenness Calibrating Plate and you have a portable, non-destructive alternative to dedicated chlorophyll hardware.
Whether you are screening fertiliser regimes, optimising indoor grow-light ratios, or monitoring crop nitrogen in the field, the workflow stays the same: photograph, measure, decide.
Frequently asked questions
What is the Dark Green Colour Index (DGCI)?
DGCI is a numerical index from 0 to 1 that measures how dark green a leaf is, based on its colour in the HSV (hue, saturation, brightness) colour space. It is used as a relative measure of chlorophyll content and, because chlorophyll tracks nitrogen, as an indicator of plant nitrogen status. Higher DGCI means a darker, greener leaf with more presumed chlorophyll.
How does Petiole Pro measure greenness?
You photograph a leaf on the Greenness Calibrating Plate, open the photo in the app's Leaf Analysis module, select the Greenness tab, choose a pointer (ROI) size, and tap the leaf. Petiole Pro reads the leaf's colour, calibrates it against the plate's markers, and returns a DGCI value in seconds, which you can save to the Gallery.
What does the Greenness Calibrating Plate do?
It provides two kinds of reference. Eight ArUco markers (1 cm on the standard plate) let the app correct for camera angle and distance, and two green colour markers (1.6 cm diameter) let it correct for lighting. This keeps DGCI values comparable across different cameras, lighting conditions, and days.
Do I have to detach the leaf to measure greenness?
No. Measurement can be non-destructive — holding an attached, living leaf against the plate — or destructive, with the leaf detached and placed on the plate. Both methods give equivalent accuracy, so you can choose whichever fits your protocol.
How do I get an accurate DGCI reading outdoors?
Follow three rules: avoid direct sunlight by photographing in your own shadow for even lighting; keep the camera close enough that all eight markers and both colour markers are visible; and make sure the lens is clean, since smudges blur the image and distort colour.
How does DGCI relate to SPAD chlorophyll meters?
DGCI shows a significant linear relationship with SPAD values. Because the two indices track each other, DGCI measurements can be correlated with SPAD readings to estimate chlorophyll content and nitrogen status — without buying a dedicated chlorophyll meter.
If leaf colour is the first thing your crop tells you, is your greenness measurement a repeatable number — or still a matter of opinion?
