Greenness Measurement Using Digital Indexes for Plant Health Monitoring: A Practical Guide to DGCI, TGI and AGRI in Petiole Pro

Why greenness is a plant health signal

A leaf is green because chlorophyll absorbs strongly in the blue and red parts of the visible spectrum and reflects in the green. When a plant is well fed and unstressed, chlorophyll concentration is high, absorption in red and blue is heavy, and the leaf reads as a deep, saturated, dark green. When nitrogen runs short, when a root zone floods, when disease takes hold, or when a leaf begins to senesce, chlorophyll degrades first — and the leaf drifts toward yellow-green, then yellow, then brown.

Because nitrogen is a major structural component of chlorophyll and of the photosynthetic enzyme machinery, leaf greenness is a long-established proxy for nitrogen status. That is the logic behind the SPAD meter, behind leaf colour charts used in rice production, and behind the whole family of RGB vegetation indexes. Greenness is attractive precisely because it is an early signal: colour shifts before biomass loss becomes visible, and well before yield is affected.

Quantified greenness supports several concrete jobs:

• Nitrogen management. Comparing greenness between treated and reference strips helps time and size a top-dressing rather than applying by calendar.
• Stress detection and screening. In breeding and variety trials, greenness under stress is a standard screening trait — and one that must be scored consistently across hundreds of plots.
• Senescence and stay-green phenotyping. Tracking how quickly greenness declines through grain fill is a direct measure of the stay-green trait.
• Disease and damage assessment. Chlorosis is often the first visible symptom; quantifying it complements area-based measures such as necrotic leaf area assessment.
• Quality control after harvest. For leafy crops and ornamentals, colour is the product grade.

Why assessing leaf greenness is genuinely hard

If greenness is such a useful signal, why is it so often described rather than measured? Because almost everything between the leaf and the number is a source of error.

1. The human eye is a comparator, not a sensor

Human colour vision is superb at judging that this leaf is greener than that one, side by side, and poor at assigning an absolute value. Colour constancy — the mechanism that keeps a white sheet looking white indoors and outdoors — actively removes the illumination information a measurement needs. Two agronomists scoring the same plot on a 1–9 visual scale routinely disagree, and the same agronomist disagrees with themselves a week later.

2. Illumination changes everything

The same leaf photographed in direct midday sun, under an overcast sky, in open shade, and under greenhouse LEDs produces four different RGB triplets. Colour temperature shifts the balance between channels; intensity shifts brightness; cloud edges shift both within a single session. Without a correction, a "greenness trend" can easily be a weather trend.

3. Cameras are not calibrated instruments

Smartphone cameras apply automatic white balance, auto-exposure, tone curves, saturation boosts, and increasingly aggressive computational processing designed to make photos look pleasant — not to preserve radiometric truth. Two phone models pointed at the same leaf will disagree. So will the same phone in two different modes. Any credible greenness pipeline has to anchor colour to a known reference in the frame.

4. Leaves are three-dimensional and shiny

Leaves curl, cup, and tilt. A curved leaf presents part of its surface at an angle to the light, producing a brightness gradient that has nothing to do with chlorophyll. Waxy cuticles throw specular highlights — blown-out white patches where colour information is simply gone. Veins, midribs, and leaf hairs add further structure.

5. Backgrounds, shadows and mixed pixels

Soil, mulch, hands, trays, and neighbouring leaves all leak into a naive measurement. Pixels at the leaf boundary are mixtures of leaf and background. Shadows cast across a leaf darken it without changing its pigment. Getting a clean greenness value requires first getting a clean segmentation — which is where computer vision earns its place.

6. A leaf is not one colour

Perhaps the most under-appreciated difficulty: greenness is not uniform across a leaf. Interveinal chlorosis, edge burn, tip dieback, and shading all create within-leaf gradients. Reducing a leaf to a single mean can hide exactly the pattern that carries the diagnosis, which is why per-pixel index maps and robust summary statistics (medians, not just means) matter.

7. Throughput

Finally, statistics. One leaf tells you almost nothing; a trial needs dozens to hundreds of samples per treatment. Any method that takes minutes per leaf will not survive contact with a real experiment — which is why batch processing is not a convenience feature but a methodological requirement.

Greenness measurement is not a colour problem. It is a segmentation problem, a calibration problem, and a throughput problem — and only then a colour problem.

Digital greenness indexes: DGCI, TGI and AGRI

A digital greenness index is a formula that collapses the colour of a pixel — or of a whole segmented leaf — into a single scalar that tracks chlorophyll or "greenness". Petiole Pro computes three of them for every detection, because each looks at the image from a different angle.

DGCI — Dark Green Colour Index

DGCI is derived from the HSB/HSV colour space — hue, saturation and brightness — rather than from raw RGB channels. Conceptually it rewards a pixel for being the right kind of green (hue), for being vividly green rather than washed out (saturation), and for being dark rather than pale (low brightness). It is normalised to a 0–1 scale, where higher values mean darker, richer green — typically more chlorophyll and more nitrogen.

Working in HSV is DGCI's key advantage: separating hue from brightness means a change in illumination intensity moves mostly one component rather than smearing across all three RGB channels. That is why DGCI is the index most commonly used in turfgrass science and nitrogen research, and why it shows a strong linear relationship with SPAD chlorophyll-meter readings. Our dedicated field guide to measuring leaf greenness with DGCI in Petiole Pro covers the calibration plate workflow behind it in full detail.

TGI — Triangular Greenness Index

TGI works directly on the red, green and blue bands. It estimates the area of the triangle formed by the three band reflectances plotted against wavelength — a geometric shortcut to how deeply chlorophyll is absorbing in the red and blue relative to the green peak. Because it uses raw band values rather than a perceptually-normalised space, TGI is genuinely sensitive to chlorophyll content, and equally sensitive to anything else that shifts the bands: exposure, white balance, glare, and shadow.

AGRI — Advanced Green Relative Index

AGRI is a customised RGB vegetation index used within the Petiole Pro pipeline. Like TGI it is built from the visible bands, but it is tuned to the specific conditions of close-range, single-leaf smartphone imagery rather than to canopy-scale or aerial imagery. Its role in the workflow is corroborative: a third, independent view of the same pixels.

How the three compare

Why one index is not enough

It is tempting to pick a single index, quote it, and move on. The Petiole R&D Lab analysis of this dataset makes a strong case against that shortcut.

Across the 272 detected leaf regions, TGI and DGCI showed a moderate negative correlation of roughly r ≈ −0.60 (R² ≈ 0.36). Two indexes that both claim to measure "greenness" agreeing only weakly — and in opposite directions — is not a contradiction. It is the expected result of two formulas responding to different underlying image characteristics: DGCI to perceptual hue and darkness, TGI to raw band geometry that also absorbs exposure and glare effects. Roughly two-thirds of the variance in one index is not explained by the other.

The practical consequence is that the indexes are complementary, not redundant. Where they agree, confidence is high. Where they diverge, something in the image — a highlight, a shadow, an unusual exposure — is worth a look. That divergence is information, and it is only available if you compute more than one index.

Note the shapes as well as the correlations. DGCI pixel medians cluster tightly in a well-behaved peak with a modest tail. TGI pixel medians pile up at low values but stretch out to several times the modal value — the long tail of outliers that gives TGI its sensitivity, and its fragility. AGRI operates on a much narrower numeric range again. Three different distributions, three different failure modes, one dataset.

Measurement quality: the valid-pixel ratio

Every greenness number carries an implicit question: how much of this leaf did you actually measure? Specular highlights, deep shadow, motion blur, and boundary pixels all produce pixels that must be excluded. The valid-pixel ratio is the fraction of pixels inside a detected leaf region that survived that filtering and contributed to the index.

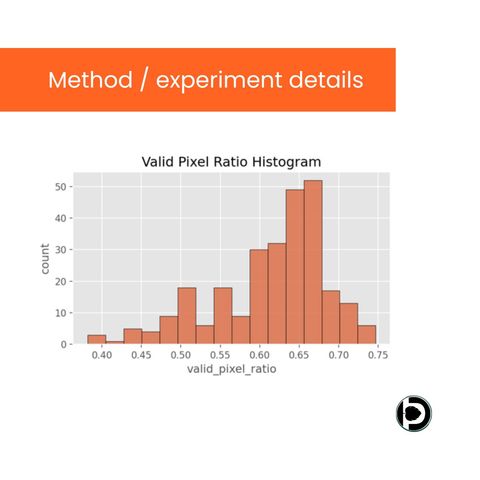

In this dataset the valid-pixel ratio had a median of about 0.63 and a mean of about 0.61, spanning roughly 0.38 at the worst detection to 0.75 at the best, with the middle half of detections between about 0.57 and 0.66. In plain terms: on a typical leaf, roughly two pixels in three contributed to the greenness value, and the weakest images contributed barely more than one in three.

That left tail is the point. A leaf measured on 40% of its pixels and a leaf measured on 75% of its pixels should not carry equal weight in a treatment mean — but they will, unless you filter. This is the difference between an average that is merely computed and an average that is defensible.

The recommended production recipe is therefore three steps: compute the greenness index; apply a measurement-quality filter based on the valid-pixel ratio; and flag extreme TGI values for human review. It costs almost nothing to implement and it is the single biggest determinant of whether a greenness dataset will hold up to scrutiny.

A worked example: 272 leaves, three indexes

Numbers are easier to trust when the whole pipeline is visible. This dataset was collected by a Petiole mobile app user and processed automatically by the Petiole Pro platform as Experiment No. 005, dated 14 August 2026.

The study covered 78 original images from which 272 leaf regions were detected, with TGI, DGCI and AGRI computed for every single detection — 816 index values in total, plus a valid-pixel ratio for each region. That is the scale at which greenness stops being anecdotal: enough replicates to see a distribution, and enough quality metadata to know which replicates to trust.

Note the ratio of detections to images: 272 regions from 78 photos, an average of about three and a half leaves per frame. Multiple leaves per photograph is a substantial throughput multiplier — it means a field session of under a hundred photos yields a sample size that would take days to build one leaf at a time on a bench-top instrument.

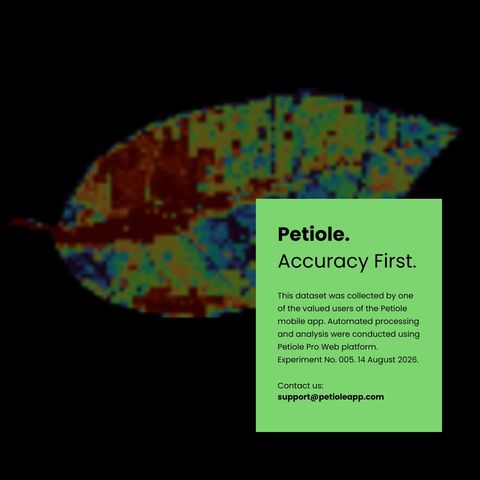

Reading a greenness heat map

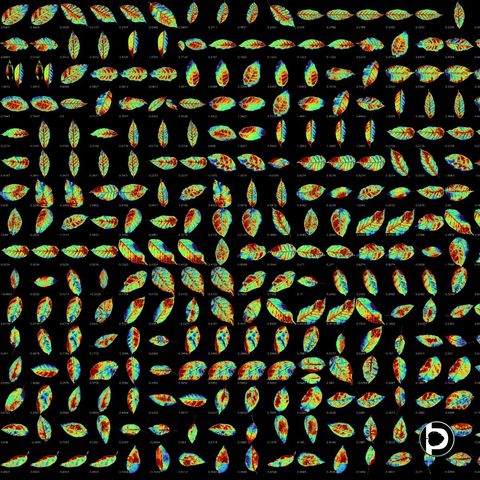

A single number per leaf is the output most people want. But the intermediate product — a per-pixel index map — is where the diagnostic value hides.

Read across that grid and the within-leaf patterns jump out: midribs and major veins trace distinct paths through the map, some leaves show a broadly uniform field while others are split between a dark, high-value region and a pale, low-value one, and edge effects appear as thin borders of a different colour. A leaf whose mean sits in the middle of the distribution might be uniformly mediocre or half-healthy and half-chlorotic — two completely different agronomic stories that a single average cannot distinguish.

This is also why median pixel values are reported rather than means alone. A median resists the pull of a small blown-out highlight or a dark shadowed corner, so the summary statistic stays anchored to the bulk of the leaf tissue rather than to its worst pixels.

The full computer-vision report

The complete Petiole R&D Lab analysis behind this article — the dataset summary, the definitions of each index, the correlation findings, the valid-pixel-ratio distribution, and the production recommendation — is embedded below. It is the authoritative record for every figure quoted here.

Measuring greenness with the Petiole Pro mobile app

Everything above is theory until someone is standing in a field with a phone. On mobile, Petiole Pro compresses the whole pipeline — capture, calibrate, segment, index — into a workflow that takes seconds per leaf and destroys nothing.

The measurement workflow

1. Place the leaf on the calibrating plate. The Greenness Calibrating Plate carries ArUco markers that let the app recover camera angle and distance, plus green colour references that anchor the measurement against the current lighting. This is what makes a reading taken this morning comparable to one taken next month on a different phone.
2. Shoot in your own shadow. Direct sunlight is the single most common cause of a bad greenness reading — it blows highlights on the cuticle and destroys colour information. Diffuse light, or your own shadow cast over the plate, is the field standard.
3. Keep the whole plate in frame, and the lens clean. All markers must be visible for the geometric correction to work, and a smudged lens quietly shifts colour across the entire image.
4. Let the app segment and score. Computer vision separates leaf from plate and background, filters invalid pixels, and computes the greenness indexes over what remains.
5. Read, save, repeat. The value is stored against the sample so the next reading builds a time series rather than replacing the last one.

Because the method is non-destructive, the same leaf on the same plant can be measured week after week — which is what turns greenness from a snapshot into a trajectory. The general capture discipline is the same one covered in our guide to photographing leaves for accurate measurement in the field, and the plate itself is available through the Petiole Pro store.

One workflow, several traits: the same calibrated photograph that yields greenness also yields leaf area, so a single capture session can populate both columns of your dataset.

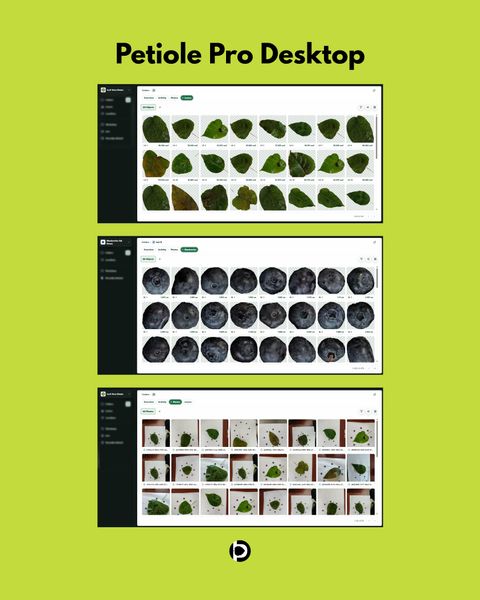

Batch processing greenness on Petiole Pro Desktop

Mobile solves capture. It does not solve the moment — familiar to anyone who has run a trial — when four hundred photographs are sitting in a folder and every one of them needs to become a row in a spreadsheet. That is the job Petiole Pro Desktop exists for.

What batch processing actually changes

• Whole folders in one operation. Point the desktop app at a folder of leaf images and it processes the set rather than one photo at a time. For a greenness study where 78 photos produce 272 detections, this is the difference between an afternoon and a coffee break.
• Many objects per photo, automatically. Each detected leaf becomes its own object with its own identifier and its own measured values. You photograph a tray of leaves; you receive a table of leaves.
• Every index on every object, consistently. The same calibrated method and the same filtering rules are applied to every image in the batch. Consistency across a dataset is not a matter of operator discipline — it is enforced by the pipeline.
• Structured projects, not loose files. Work is organised into folders, photos, objects and galleries, with the source photograph always one click from the derived measurement. When a value looks odd, you can see the image that produced it.
• Visual QC at a glance. A gallery of hundreds of segmented objects, each labelled with its value, is the fastest anomaly detector there is — a bad segmentation or a mis-lit leaf is visible in a scroll, not buried in row 217 of a CSV.
• Paging that scales. The interface handles hundreds of objects per project — the blueberry quality-control project shown above pages through 478 detections — so sample size stops being a workflow constraint.
• Export-ready data. Per-object measurements export for statistics, so the gap between "photos in a folder" and "a data frame ready for analysis" is measured in minutes, with no manual transcription and no transcription errors.
• A bigger screen for judgement calls. Reviewing per-pixel index maps, comparing borderline detections, and deciding which low-valid-pixel-ratio observations to drop are all tasks that benefit from a desktop display rather than a phone.

The same folder-level approach is what makes high-sample-count studies practical in other traits too — the basil leaf area study uses exactly this mobile-capture, desktop-batch pattern.

Capture non-destructively on mobile; measure, filter and export at scale on desktop. The same calibrated method, from one leaf to a thousand.

Mobile or desktop: which to use when

In practice most serious users run both: the phone is the instrument, the desktop is the laboratory.

Best practice for reliable greenness measurement

A calibrated pipeline still rewards good habits. These are the practices that most reliably separate a usable greenness dataset from an ambiguous one:

• Always include the colour reference. Greenness without a colour anchor is a photograph of the lighting as much as of the leaf.
• Avoid direct sun; standardise your light. Shoot in diffuse light or your own shadow, and keep the lighting condition consistent across a study.
• Standardise time of day. Leaf water status and light response change through the day; measuring at a consistent hour removes a confound you cannot correct for afterwards.
• Standardise leaf position. Youngest fully expanded leaf, or a fixed node — pick one and hold to it. Greenness varies systematically along a stem, and comparing different positions compares nothing.
• Keep the lens clean and the plate unstained. Both are colour filters when dirty.
• Sample enough leaves. Leaf-to-leaf variation is large. Aim for a sample size that lets you see a distribution, not a point.
• Filter on the valid-pixel ratio before you compute treatment means. Decide the threshold in advance and apply it uniformly.
• Review extreme TGI values individually. They are more often an image artefact than a biological finding.
• Report relatively, with a control. Greenness indexes are strongest as comparisons — treatment versus reference strip, or this week versus last — rather than as absolute physiological values.

What greenness indexes can — and cannot — tell you

Trustworthy measurement means being explicit about limits. Digital greenness indexes are genuinely useful, and they are not a spectrometer.

They can:

• Rank plots, plants, treatments and cultivars by leaf greenness quickly and repeatably.
• Track change over time in the same plants, non-destructively.
• Provide a calibrated proxy for chlorophyll and, indirectly, nitrogen status — DGCI in particular relates closely to SPAD-style chlorophyll-meter readings.
• Reveal within-leaf spatial patterns through per-pixel index maps.
• Deliver enough replicates to support statistics, because throughput is high.

They cannot:

• Report chlorophyll or nitrogen in absolute physiological units without local calibration against laboratory or meter values for your crop and conditions.
• Distinguish why a leaf is pale. Nitrogen deficit, sulphur deficit, iron chlorosis, root disease, waterlogging, and natural senescence can all reduce greenness. The index tells you that colour changed, not what caused it.
• Compensate for a photograph that lost the information — a blown-out highlight contains no recoverable colour.
• Substitute for area, count or damage measurements. Greenness answers "how green"; it does not answer "how much leaf" or "how much damage".
• Be compared meaningfully across studies that used different lighting, cameras and calibration procedures.

Read with those boundaries in mind, greenness indexes do exactly what plant health monitoring needs: they turn a subjective impression into a repeatable number, fast enough and cheap enough to collect at the scale real decisions require.
