Productive and Effective Leaf Area Measurement of Basil: A Field Guide to Petiole Pro on Mobile and Desktop

Why basil leaf area matters

In most crops, leaves are a means to an end — the plant photosynthesises through them to fill a grain, a fruit, or a root. In basil, the leaves are the harvest. That makes leaf area an unusually direct measure of value. A larger, healthier canopy means more photosynthesis, more biomass, and more sellable product; it also signals how the plant is responding to light, nutrients, spacing, and pruning.

Leaf area underpins several of the metrics researchers and growers care about most:

• Growth rate and biomass. Tracking total leaf area over time gives a non-destructive proxy for how fast a plant is accumulating biomass between pinches and harvests.
• Light interception and canopy efficiency. Leaf area index (LAI) and canopy cover determine how much of the available light — daylight or LED — the crop actually captures.
• Specific leaf area (SLA). Leaf area per unit dry mass is a workhorse trait in plant phenotyping, describing how "thick" or "thin" a leaf is and how the plant invests its resources.
• Treatment response. When you compare cultivars, light recipes, nutrient regimes, or biostimulants, leaf area is one of the cleanest, most comparable readouts of the effect.

Basil is increasingly grown in controlled-environment agriculture — hydroponics, greenhouses, and vertical farms — precisely because these systems let growers optimise those variables. But optimisation needs measurement. You cannot tune a light recipe or a nutrient schedule against a trait you are only estimating by eye.

Why basil is hard to measure

If leaf area is so important, why is it so often estimated rather than measured? Because basil, specifically, fights back against almost every measurement method. Its virtues in the kitchen — glossy, tender, aromatic, abundant leaves — are exactly what make it awkward to quantify.

1. Glossy, waxy leaf surfaces

Sweet basil leaves have a shiny, slightly waxy cuticle. Under direct light they throw specular highlights — bright white patches of reflected light. To a simple colour-threshold algorithm, a glare spot can look like background rather than leaf, punching holes in the measured area. Any credible basil measurement has to handle reflection without discarding real leaf tissue.

2. Cupped, convex leaf shape

Basil leaves rarely lie flat. They cup and curl, doming upward along the midrib. A flat photograph of a curved leaf captures its projected area, which underestimates the true surface. Historically, getting an accurate figure meant physically flattening every leaf under glass — slow, and hard on fragile tissue.

3. Small, numerous, overlapping leaves

A single basil plant carries many small leaves in a dense, bushy canopy, with leaves overlapping and shading each other. Whole-plant photographs suffer from occlusion — you cannot see, let alone measure, the leaves hidden behind others. Getting clean per-leaf numbers usually means separating leaves out, which multiplies the sample count.

4. Fragility and rapid growth

Basil leaves bruise and wilt quickly once handled or detached, so destructive workflows introduce error and waste marketable product. At the same time, basil grows fast and is harvested repeatedly, so a single measurement is rarely enough — you need to track the same plants over time, which rules out any method that destroys them.

Traditional methods and their limits

Before smartphone imaging, basil leaf area was measured in one of three ways — each with a real cost:

• Bench-top leaf-area meters. Accurate, but expensive, tethered to the lab, and destructive: leaves must be cut and fed through the device, removing them from production and stressing the plant.
• Graph paper and grid counting. Cheap but painfully slow and subjective, and still destructive for anything beyond a rough trace.
• Desktop scanners with ImageJ. Reasonably accurate for flat leaves, but it means detaching and flattening leaves, scanning them, and hand-configuring image-analysis software — a laborious pipeline for glossy, cupped basil, and impossible to do in a greenhouse aisle.

All three share the same two weaknesses: they are destructive, so you cannot follow the same plant through time, and they are low-throughput, so measuring enough samples for a trial becomes the bottleneck. For a fast-growing, frequently harvested crop like basil, that is exactly the wrong shape of tool. This is the same limitation we explore in the wider guide to photographing leaves for accurate leaf area measurement in the field.

Measuring basil leaf area with the Petiole Pro app

Petiole Pro replaces that pipeline with a photograph-and-tap workflow that runs on the Android phone or tablet you already carry. The principle is simple: put a leaf next to a known scale reference, take a photo, and let the app convert pixels into real-world square centimetres.

How the measurement works

1. Place the leaf with a scale reference. Lay the basil leaf on a plain background alongside the Petiole reference marker (or calibration plate). The marker gives the app a known real-world size to calibrate against — the difference between "so many pixels" and "so many square centimetres".
2. Capture a clean, even photo. Shoot from directly above in soft, even light, avoiding the direct sun that would scatter glare across those glossy leaves.
3. Let the AI segment the leaf. Petiole's computer-vision model separates leaf from background — including through reflections and shadows — and outlines the leaf's true contour.
4. Read and save the area. The app reports the leaf area in cm² and stores it, ready for the next leaf or the next plant.

Because the whole process is non-destructive, you can measure the same basil plants again next week and the week after, building a real growth curve instead of a single snapshot. And because the scale reference lives in the frame, the numbers stay comparable across phones, operators, and dates. If you are wondering whether you need the full calibration plate or a simple reference is enough, our explainer on whether you need a calibration plate for Petiole Pro walks through the trade-offs.

Tracking growth, not just a snapshot

The real payoff of a non-destructive method is time. Measuring the same plants repeatedly turns leaf area into a growth trajectory — the basis for calculating growth rate, comparing treatments, and spotting stress early. The plants below span a range of growth stages; measured consistently, that spread becomes a quantified picture of how a basil crop develops.

A worked example: measuring basil growth

Numbers are easier to trust when you can see them worked through. The Petiole R&D Lab analysed a small basil dataset — four images of basil plants contributed by a Petiole app user — to demonstrate the full measurement and reporting workflow, from raw photo to summary statistics.

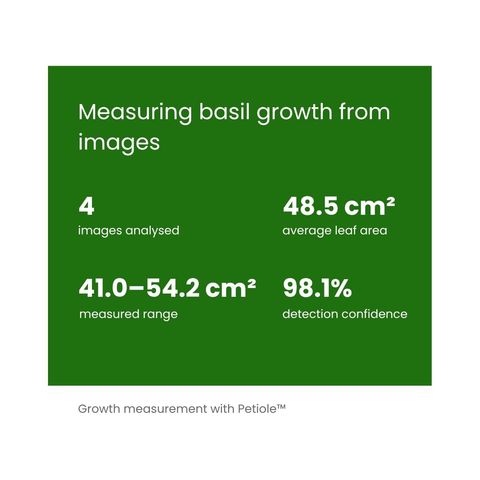

Across the four images, Petiole measured an average leaf area of 48.5 cm², with individual measurements spanning a range of 41.0 to 54.2 cm², at a mean detection confidence of 98.1%. In other words: the plants were comfortably above 40 cm² of leaf, fairly tightly clustered, and the model was highly certain about what it was measuring.

What makes this "effective" rather than merely "quick" is that every number is auditable. Each measurement carries a detection-confidence score, so you can see how sure the model was, flag any low-confidence outliers, and keep only the data you trust — a discipline that matters far more in a research trial than a single headline average.

Reading the results: averages, ranges, confidence

A productive measurement tool does not just hand you a mean — it shows you the distribution behind it. The same basil dataset, plotted, tells a richer story than the summary card alone.

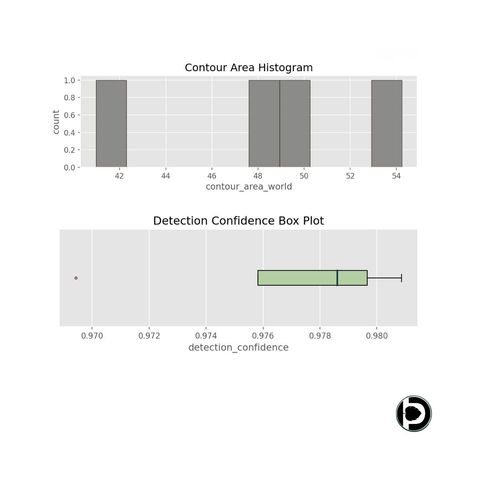

• The histogram shows how leaf areas are distributed rather than collapsing them to a single average — useful for spotting whether a crop is uniform or splitting into large and small plants.
• The box plot makes quality control visual: the bulk of measurements sit in a tight band of high confidence, and the lone outlier below the whisker is exactly the sort of measurement you would double-check before including it.

This is the difference between data you report and data you can defend. By pairing each leaf-area figure with a confidence score and showing the whole distribution, Petiole makes it straightforward to separate reliable measurements from ones that warrant a second look.

The full computer-vision results

The complete Petiole R&D Lab analysis of this basil dataset — the per-image leaf-area measurements, detection confidences, and the charts summarised above — is embedded below as a computer-vision results report. It is the authoritative record behind every figure quoted in this article.

Scaling up: batch processing on Petiole Pro Desktop

Measuring one leaf at a time on a phone is perfect in the greenhouse. But a serious basil trial can involve dozens of plants and hundreds or thousands of leaves — far more than anyone wants to tap through individually. This is where Petiole Pro Desktop changes the economics of the work.

Why batch processing matters for basil

• Whole folders at once. Point the desktop app at a folder of leaf images and it processes them as a batch, rather than one photo at a time — the single biggest time saving for high-sample-count crops like basil.
• Organised into objects and galleries. Every detected leaf becomes its own object with a label and a measured area, laid out in a scrollable gallery. In the demo above, 44 leaves are indexed as LA-1 through LA-44, each with its own cm² value — a structure that scales just as cleanly to hundreds of items.
• Consistent, reviewable results. The same calibrated method is applied to every image, and each result stays visible for inspection, so you can scan a whole gallery and catch anomalies at a glance.
• Export-ready data. Per-object measurements can be exported for statistics, so the leap from "photos in a folder" to "a table ready for analysis" takes minutes, not an afternoon of manual entry.

The workflow is deliberately continuous with the mobile app: capture in the field or greenhouse on the phone, non-destructively; then bring the images into the desktop to measure, organise, and export at scale. Mobile handles capture and quick reads; desktop handles throughput and reporting. Together they cover the full span from a single leaf to a full trial.

Non-destructive capture on mobile, high-throughput batch processing on desktop — the same calibrated measurement, from one leaf to a thousand.

Beyond area: greenness and other traits

Leaf area answers "how much leaf?" — but basil quality is also about colour. A deep, even green signals healthy, well-fed plants, while paling or yellowing hints at nitrogen or stress problems. Because Petiole Pro already works from a calibrated photo, the same image can yield more than one trait.

Alongside leaf area, Petiole Pro can measure leaf greenness via the Dark Green Colour Index (DGCI), a calibrated proxy for chlorophyll and nitrogen status. For a basil grower, pairing area (how much canopy) with greenness (how healthy that canopy is) gives a fuller picture of crop condition from a single workflow. Our field guide to measuring leaf greenness with DGCI in Petiole Pro covers that method in depth. And the same photo-based, non-destructive approach extends well beyond herbs — see, for example, how it is applied to cotton leaf area measurement in row crops.

The story behind the dataset

This basil analysis began the way much of Petiole's work does — with a real user sharing their images, and the Petiole R&D Lab turning them into measurements the whole community can learn from. The team shared the result on LinkedIn, part of an ongoing conversation about how computer vision makes plant measurement faster, cheaper, and more repeatable.

Best practice for basil measurement

A calibrated method still rewards good habits. A few basil-specific practices keep every measurement productive and accurate:

• Beat the glare. Photograph in soft, even light — your own shadow outdoors, or diffuse indoor light — so the glossy cuticle does not throw specular highlights across the leaf.
• Flatten gently, or accept projected area consistently. If you need true surface area, flatten cupped leaves lightly; if you are tracking change over time, just be consistent so every measurement is comparable.
• Keep the scale reference in frame and in focus. The calibration marker is what converts pixels to cm² — if it is blurred, cut off, or dirty, accuracy suffers.
• Use a contrasting background. A plain, matte background helps the segmentation cleanly separate each leaf, especially with basil's small, overlapping leaves.
• Watch the confidence scores. In batch work, sort or scan by detection confidence and review the outliers before trusting the summary statistics.

Follow those, and the workflow stays the same whether you are checking a single plant or clearing a folder of a thousand images: photograph, measure, review, export.
